Decription:

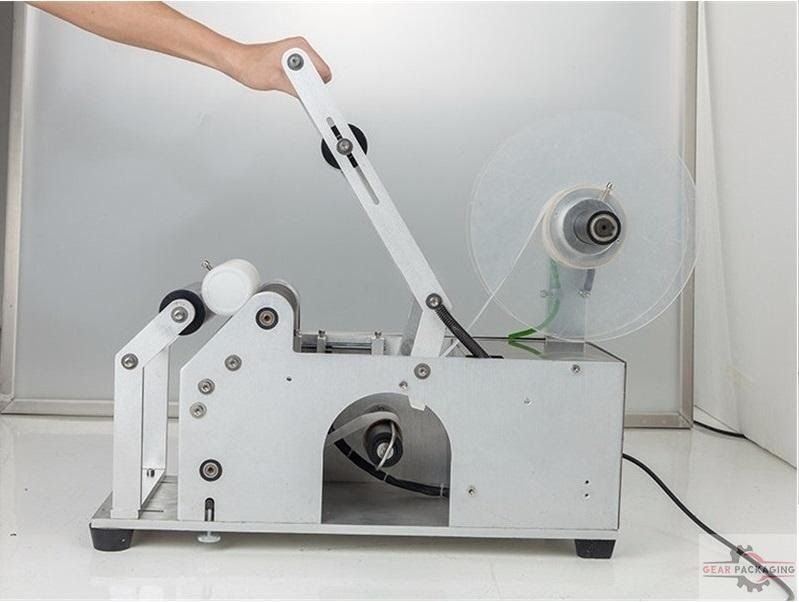

Ⅰ.Brief introduction of manual sticker label machine:
1. The machine is suitable for: round bottle, drum, cylinder, non-dry label, like PET bottle, plastic bottle, glass bottle, metal bottle etc. It can be widely used in cosmetics, beverage, food, pharmaceutical, etc.
2. The machine is desktop type design, structure compact, appearance compact, powerful, the anodic oxidation aluminum alloy stents and the advanced computer white electricity box, beautiful and easy to operate.
3. The manual sticker label machine can be equipped with date printer according to customer demand.
4.This machine adopts extrusion type device to finish the labeling, you just need to put the bottle on the position.
5.The machine adapts screens adjustment and synchronous belt traction, making the cans manual sticker label machine very convenient to change different bottles with stable performance.
6.With photoelectric sensor,this machine has high detective sensitivity with the bottle and the label.
II.Technical parameter of manual sticker label machine:
Model:GP-LM60
Voltage:220V/50 HZ
Power:120 w
Labeling precision:≤ ±0.5mm
Efficiency:25-50 piece/minutes
The size of work-piece:10-150 mm in diameter
Tag width:15-140 mm
Tag length:15-314 mm
Label inner diameter:75mm
Label outer diameter:300mm
machine size:650 x 450 x 450 mm
Weight of manual sticker label machine:25 kg
Warranty:1 year
Benchtop labeling machine semi automatic round bottles labeller with batch number codes printer
Product Characteristics:
1.Wide application,adapt to the dimension of 10-100mm round bottle labeling.
2.High accuracy,and the error of label joining part is no more than 0.5mm.
3.Adopt extrusion device to feeding,just need to put work-pieces,the machine can automatically finish labeling.
4.Use chuck type to adjust, different work-piece can cut over easily.
5.Use the synchronous belt,the stability of the mechanism is greatly improved.
6. Desktop design, make the structure simple,figure small and function strong.
7. Anode corundume alloy shelf and the deluxe computer white electricity box make the figure beautiful and generous.
8. Advanced magic eyes,make the sensitivity high for the object and label.
Ⅲ.Benchtop labeling machine working inlustration
Operation mode:
Main structure and main components
1. The machine is suitable for: round bottle, drum, cylinder, non-dry label, like PET bottle, plastic bottle, glass bottle, metal bottle etc. It can be widely used in cosmetics, beverage, food, pharmaceutical, etc.
2. The machine is desktop type design, structure compact, appearance compact, powerful, the anodic oxidation aluminum alloy stents and the advanced computer white electricity box, beautiful and easy to operate.
3. The manual sticker label machine can be equipped with date printer according to customer demand.
4.This machine adopts extrusion type device to finish the labeling, you just need to put the bottle on the position.
5.The machine adapts screens adjustment and synchronous belt traction, making the cans manual sticker label machine very convenient to change different bottles with stable performance.
6.With photoelectric sensor,this machine has high detective sensitivity with the bottle and the label.
II.Technical parameter of manual sticker label machine:
Model:GP-LM60
Voltage:220V/50 HZ
Power:120 w
Labeling precision:≤ ±0.5mm
Efficiency:25-50 piece/minutes
The size of work-piece:10-150 mm in diameter
Tag width:15-140 mm
Tag length:15-314 mm
Label inner diameter:75mm
Label outer diameter:300mm
machine size:650 x 450 x 450 mm
Weight of manual sticker label machine:25 kg
Warranty:1 year
Benchtop labeling machine semi automatic round bottles labeller with batch number codes printer
Product Characteristics:
1.Wide application,adapt to the dimension of 10-100mm round bottle labeling.
2.High accuracy,and the error of label joining part is no more than 0.5mm.
3.Adopt extrusion device to feeding,just need to put work-pieces,the machine can automatically finish labeling.
4.Use chuck type to adjust, different work-piece can cut over easily.
5.Use the synchronous belt,the stability of the mechanism is greatly improved.
6. Desktop design, make the structure simple,figure small and function strong.
7. Anode corundume alloy shelf and the deluxe computer white electricity box make the figure beautiful and generous.
8. Advanced magic eyes,make the sensitivity high for the object and label.
Ⅲ.Benchtop labeling machine working inlustration
Operation mode:
Main structure and main components
Ⅳ.Installation
►After confirming the position to install the unit, adjust the four machine leg screws to make the main unit at level with desktop.
►User must get familiar with the structure, work principle, methods of adjustment and technical parameters of the unit.
►Check if each component is in good condition and lubrication status of each transmission part. Lubrication oil must be supplemented if in shortage.
►The unit can be used for normal operation once there is no abnormity is found after half an hour’s test run.
►Light Sensor Sensitivity Adjustment
COARSE & FINE Adjustment.
Set to Minimum on COARSE and to Middle on FINE.
Put an object in front of the detecting head, rotate COARSE to the right slowly until OUT is on.
Then adjust Fine knob, rotate to the left until light is off, then to the right until light is just on.
Ⅴ.Benchtop adhesive cans manual sticker label machine suits non-adhesive paper label, plastic label:
Labeling samples picture by benchtop labeling machine
Other recommandation machine acooding to different products,including semi automatic and automatic labeling machine
Packaging & Shipping
1. Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2. After inspection, our cans manual sticker label machine are wrapped by plastic film and then carefully packed in wooden cases.
3. Air express, air freight, sea tranportation, can be provided by us.
