Description:
Pre-made bags pouch spout tomato sauce paste seasoning liquid filling sealing equipment rotary automatic doypack zipper bag packing machine
Model:GP-R08-300
Packing range(bag size) Width 100-200mm, Length 100-300mm
Packing Weight ≤ 500ml
Capacity 30-50 bag/min (speed depends on filling product &weight)
Packing Precision error<±1%
Pouch type Stand-up bag,Flat bag, paper bag,composite material etc.
Total Power 2 kw
Compressed Air Consumption 0.6 m3/min
Voltage 3 Phase 380V 50HZ/60HZ
Total Size (L)2420*(W)1510*(H)1480mm
Machine Weight 800 kg
This machine is suitable for filling and sealing for the liquid and semi-liquid product such as washing liquid, yellow wine, sauce, vinegar, juice, beverage, ketchup, chilly sauce, etc. The machine can customized to pack powder, grain, piece.
Packing Weight ≤ 500ml
Capacity 30-50 bag/min (speed depends on filling product &weight)
Packing Precision error<±1%
Pouch type Stand-up bag,Flat bag, paper bag,composite material etc.
Total Power 2 kw
Compressed Air Consumption 0.6 m3/min
Voltage 3 Phase 380V 50HZ/60HZ
Total Size (L)2420*(W)1510*(H)1480mm
Machine Weight 800 kg
This machine is suitable for filling and sealing for the liquid and semi-liquid product such as washing liquid, yellow wine, sauce, vinegar, juice, beverage, ketchup, chilly sauce, etc. The machine can customized to pack powder, grain, piece.
Machine drawing:
Stand up pouch packing machine’s Application:
This is suitable for filling and sealing for:
1. Solid Species: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.
2. Granule Species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, vegetable seeds ,etc.
3. Powder species: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides fertilizers, chemical raw materials.
4. Liquid Species: rice wine, soy sauce, rice vinegar, fruit juice, beverages, detergent , milk ,water ,and so on.
5. Thick liquid Species: tomato sauce, peanut butter, jam, chili sauce, bean paste and so on.
6. And others ......
Stand up pouch packing machine’s introduce:
1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5) Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7) Use the plastic bearing; don't need put on oil, less pollution.
8) Use no oil vacuum pump; avoid polluting the environment in the production.
9) The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.
10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is prefect and has a high quality of the sealing part, this improved the product specification.
11) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
12) With different feeders changed to pack solid, liquid, thick liquid, power and so on.
13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on preformed bag made by film and paper.
Workflow:
This is suitable for filling and sealing for:
1. Solid Species: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.
2. Granule Species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, vegetable seeds ,etc.
3. Powder species: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides fertilizers, chemical raw materials.
4. Liquid Species: rice wine, soy sauce, rice vinegar, fruit juice, beverages, detergent , milk ,water ,and so on.
5. Thick liquid Species: tomato sauce, peanut butter, jam, chili sauce, bean paste and so on.
6. And others ......
Stand up pouch packing machine’s introduce:
1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5) Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7) Use the plastic bearing; don't need put on oil, less pollution.
8) Use no oil vacuum pump; avoid polluting the environment in the production.
9) The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.
10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is prefect and has a high quality of the sealing part, this improved the product specification.
11) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
12) With different feeders changed to pack solid, liquid, thick liquid, power and so on.
13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on preformed bag made by film and paper.
Workflow:
1. Giving bags
2. Date printing
3. Open bags 1st
4. Open bags 2nd (Integrity open the bottom of bag)
5. Filling & Vibrate (Check 1: No bag or bag open error, no filling)
6. Filling 2nd (Or instead of Filling 2nd)
7. Sealing 1st (Check 2: No bag, no sealing. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm)
8. Sealing 2nd & Output Product
Safety Device:
1.No pouch or open error,on filling.
2.No pouch or no filling,no sealing.
3.No coding ribbon,Emergency stop and alarm.
4.The safety door open,alarm(option)
5.The air pressure not enough,alarm.
6.The sealing temperature anomaly,alarm
1.No pouch or open error,on filling.
2.No pouch or no filling,no sealing.
3.No coding ribbon,Emergency stop and alarm.
4.The safety door open,alarm(option)
5.The air pressure not enough,alarm.
6.The sealing temperature anomaly,alarm
Different working station for different sizes bags &filling materials:
Bag sealing samples:

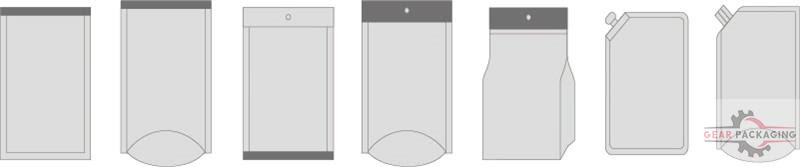

Bag types:
Different materials decide different metering way for bags-given packing machine:
Powder&granules listed as below respectively:
Our Support and service:
Detailed user's manual,English type;
Detailed video of showing machine installation and operation;
Detailed pictures of showing how to adjust machine's speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
After sale response time less than 4 hours ;
We can provide door to door service ;
We can provide free training in factory;
We provide free on-line service by Skype, Wechat...to help you solve problem.
Detailed user's manual,English type;
Detailed video of showing machine installation and operation;
Detailed pictures of showing how to adjust machine's speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
After sale response time less than 4 hours ;
We can provide door to door service ;
We can provide free training in factory;
We provide free on-line service by Skype, Wechat...to help you solve problem.
Wooden case packaing and shipping:
1. Pre-sale service : according to customer's requirement , we can supply the factory drawing picture. and suggestion for building the factory.
2. Pre-sale service: we will test customers' product first to check whether our machine is fit for your product or not, and also will take the video for our customers to check.
3.Installation and Test Running of Machine: We’ll send our technician to install and test run and train operation, according to customer’s requirements. All expense including 2-way ticket, food, hotel and local traffic, will be paid by customer.
4.Guarantee: 3 years. During guarantee period, in case of any trouble of the machine being discovered is not due to operation, and caused by machine-self, the seller will provide the spare parts. After 1 year, the seller will supply the spare parts to buyers as the cost.
2. Pre-sale service: we will test customers' product first to check whether our machine is fit for your product or not, and also will take the video for our customers to check.
3.Installation and Test Running of Machine: We’ll send our technician to install and test run and train operation, according to customer’s requirements. All expense including 2-way ticket, food, hotel and local traffic, will be paid by customer.
4.Guarantee: 3 years. During guarantee period, in case of any trouble of the machine being discovered is not due to operation, and caused by machine-self, the seller will provide the spare parts. After 1 year, the seller will supply the spare parts to buyers as the cost.
