Rotary perfume liquid filling crimping line automatic glass bottles filler crimper collar pressing equipment cosmetic packing machinery

Description:

Rotary perfume liquid filling crimping line automatic glass bottles filler crimper collar pressing equipment cosmetic packing machinery

Model:GP-P60

Filling volume: 1ml-5ml 10ml-50ml 50ml-100ml
output:25-30bottle/min
Main motor power: 1kw
Air source pressure:0.8Mpa
Power supply: 220V 50HZ
Crimping bottles diameter:10mm to 25mm
Bottles sizes: Multiple bottles compatible by changing the mould
Weight : 550kg
Size:2500*1100*1100mm

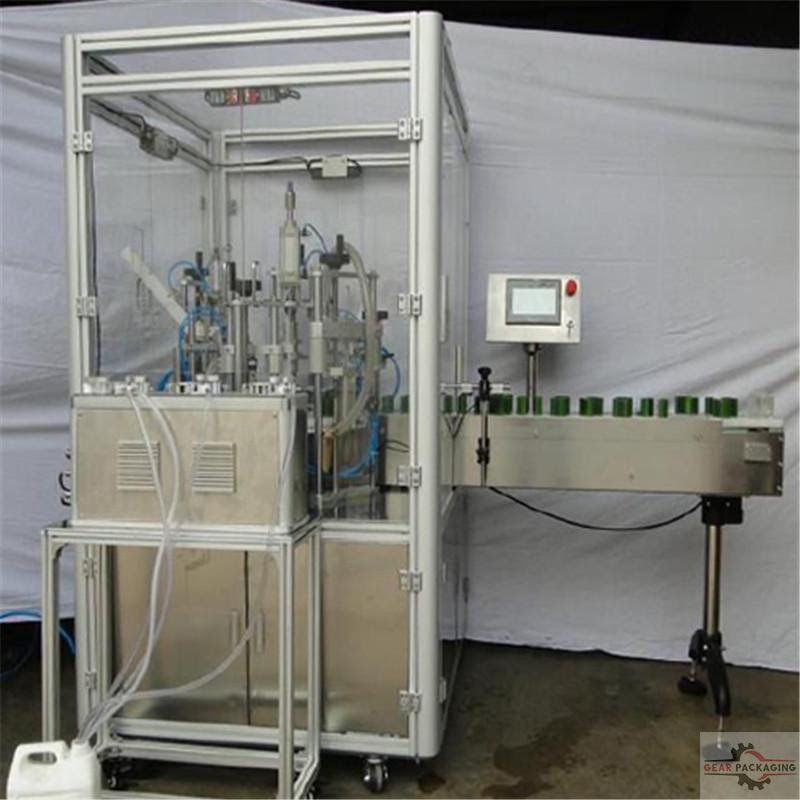

The model GP-P60 Perfume filling crimping collaring equipment with vacuum cleaning system is an automatic 12 station perfume filling and crimping machine, adopting PLC programmable control. The compact structure and flexible working mode meet different production requirement. Its automatic vacuum cleaner can absorb the tiny particles and impurities. Filling device includes rapid filling pumps and level filling nozzle which guarantee high production and accurate filling volume. Pump head crimping group automatically fits pump head (insertion of micro pump in the bottle), precrimps (to center and temporarily fix the micro pump) and crimps. Automatic collar fitting device with high accuracy, coordinating with automatic collar pressing device achieves high automation degree.

Basic parameter of automatic rotary glass bottles clenaing filling crimping collaring machine:

Model GP-P60
Filling volume: 1ml-5ml 10ml-50ml 50ml-100ml
output:25-30bottle/min
Main motor power: 1kw
Air source pressure:0.8Mpa
Power supply: 220V 50HZ
Crimping bottles diameter:10mm to 25mm
Bottles sizes: Multiple bottles compatible by changing the mould
Weight : 550kg
Size:2500*1100*1100mm
Basic parts for whole set filling crimping machine:

Vaccum cleaning system for glass bottles

Filling nozzles
- 2 sets of rapid filling pump
- 1 set of level filling nozzle
- Automatic pump fitting device
- Pneumatic precrimping device
- Pneumatic crimping device
- 1 set of adjustable pucks for regular shape bottles
- Incoming/GP-P60 perfume vacuum cleaning filling crimping collar pressing machinery:

Material contact parts are made of 316L stainless steel, PTFE and medical silicone rubber.Optional stainless steel plunger metering pumps or high-precision ceramic plunger metering pumps, servo motor drive, just set the loaded amount on the touch screen, each plunger metering pump to do the fine adjustment.Germany's Siemens HMI and PLC, the program automatically control and stable operation.Pneumatic components of Germany FESTO and Taiwan AirTAC brandBottle positioning system to ensure precise positioning of the bottle.
The anti-drip filling head, effectively prevent the product drip and wire drawing.Robot Jianei Se and outside cover, stable and reliable.Torque capping devices, precise control of the capping torque, to avoid wear on the cap. Can replace the capping head to accommodate different cap sizes.With no bottle detection can be achieved no bottle no filling, no cap.
Applicable bottles:

Concerning different sizes of perfume bottles it only needs to change the holder mould pictured as below:

Regarding the pump feeding system it should be equipped with the pump sorter feeding bowl:

Material:
Parts contacted with material are made of 316L stainless steel and PTFE.
Component adopt stainless steel and aluminum alloy surface senior
anodic oxidation process
Conveyor and the machine housing are made of 304 stainless steel.
Conveyor chain plate is made of engineering plastic
Control system composes of:
Stainless steel panel control with strong stainless steel tubular holding post.
Emergency switch on the panel control.
Machine controlled with P.L.C. Siemens.
Siemens human-computer interface.
Normal machine operation.
Alarm display.
Possibility to have different language interface.
Standard detection:
No bottle at the infeed = machine stop (manual restart when bottles are
sufficiently present).
Cap chute full = vibrator stop (automatic restart).
No cap on the bottle = machine stop (manual restart)
No bottle = no fill sensing/control self-priming
simplicity of operation

After-sales for production filling line olive filler capper labeller equipment:

Linear perfume production line for round glass bottle,automatic straight production line:

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
