Cleaning cream lotion tubes filling sealing machine fully automatic with tubes loading feeding system water chiller accessory hose filler sealer equipment

Description：

Cleaning cream lotion tubes filling sealing machine fully automatic with tubes loading feeding system water chiller accessory hose filler sealer equipment

Basic parameter of tubes filling sealing machine fully automatic Model:GP-TSF60
tube materials plastic tubes/laminated tubes/metal tubes
filling volume 5ml-250ml/tube(Adjustable)
filling precision 1%(or less than)
output capacity 45tube per minute
tube diameter ø10mm-Ø50mm
max tube length 220mm
power source 220v/380v/50-60hz
air pressure 0.55mpa-0.65mpa
auxiliary motor 1.1KW
thermosealing power 3.0KW
overall dimension(LXWXH) 2000*900*1500
weight of tubes filling sealing machine 850KG

The control parts of the machine are composed of intelligent man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control.The components of the machine which touches the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc.

During the process, hose-feeding and setting, filling and sealing, ejecting are all auto matically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.


Main technic of model GP-TSF60 tubes filling sealing machine automatic with auto loading feeding system



Main features of automatic tubes filling sealing machine model GP-TSF60

1.the following transmission part enclosed in the platform, safe, reliable, non-polluting;
2.filling and sealing parts mounted on the platform above semi-closed static-frame viewing hood, easy to observe, easy to operate, easy to maintenance;
3.PLC control, man-machine conversation interface;
4.circuitous dial to cam drive, high speed, high precision;
5.box and Inclined tube position, optionally;
6.curved armrest with a vacuum adsorption unit, handrails and pressure tube device interaction, the hose is fed into the upper tube station;
7.photoelectric standard workstations, high-precision sensor, stepper motor control hose pattern in the correct position;
8.movable injection materials head deep inside the hose injection material, side exit side note, the end of injection material delivery nozzle with integrated manner to ensure filling blow cut quality;
9.no tube no filling;
10.sealing adoption (Leister hot air gun) tail pipe internal heating , cooled by cooling means external configuration;
11.the workstation automatically typing the code number printed on the process requirements of the position;
12.cut plastic robot at a right angle or a rounded end of the hose for selection;
13.fault Baojing, no pipe alarm , the door opened shutdown, overload shutdown;
14.counting and quantitative downtime;
Drawing of tubes filling sealing machine model GP-TSF60

working principe of tubes filling sealing machine

the empty tubes neatly ready in the big container flow in order on a conveyor automatically
plugged with the forming dies,and turn over into each station by a robot;
meanwhile under the action of a quantitative piston valve which is directly connected
to the cone-shaped lockable hopper,the paste materials is automatically injected into the tubes
at each interval station.The turntable thereupon takes the filled tubes to next station at which
the manipulators seal the tube's bottom immediately.
The machne can change filling volume by adjusting a flow gauge.When employed with various
manipulators it is capable to deal with multi-metal materials tubes including aluminum and furthurmore
fold the bottom with two -layers three layer of saddle shape.Besides it can thermo-seal all
plastic tubes and laminated hoses as well .
A coder's manipultor types dates,series number and expiry date on the end of tubes .After that the
final products will be led into a colluction container tubes automatically.
How to install tubes filling sealing machine fully automatic:

How to adjust the safe-clutch for tubes filling sealing machine with automatic loading feeding tube system

How to operate the machine for different tubes


Maintenance of tubes filling sealing machine hose filler sealer equipment automatic

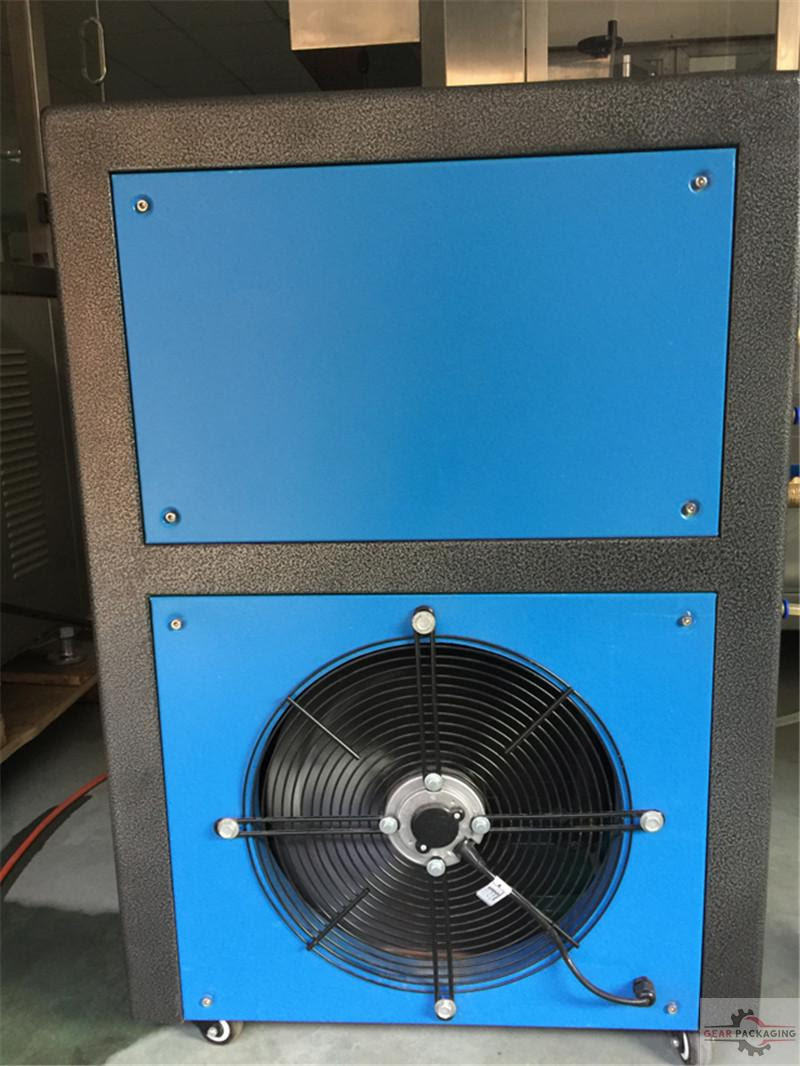

Accessory for cooling the inner-outer heating process


tubes filling sealing samples final product based on customer's tube


Packaging pictures about our machine exported

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE).
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
