Description:
Soft tube labeling machine Plastic laminated aluminum tubes labeling machine labels applicator semi automatic non-dry sticker equipment
1.Label width: 20-200mm
2.Label length:20-320mm
3.Products Diameter: φ8mm - φ100mm
4.Products Heigth: 10mm -200mm
5.Max Outside diameter of label roll: φ240mm
6.Inside diameter of label roll: φ76mm 7
.Max Labeling speed:25 m/min
8.Accuracy of labeling:±1mm
9.Power: 220V 50Hz 145W
10.Air Pressure: 0.4-0.6 mpa
11.Machine Dimension: 680mm x 660mm x 620 mm
12. Machine Net Weihgt : 90 KG Gross weiht : 120KG
2.Label length:20-320mm
3.Products Diameter: φ8mm - φ100mm
4.Products Heigth: 10mm -200mm
5.Max Outside diameter of label roll: φ240mm
6.Inside diameter of label roll: φ76mm 7
.Max Labeling speed:25 m/min
8.Accuracy of labeling:±1mm
9.Power: 220V 50Hz 145W
10.Air Pressure: 0.4-0.6 mpa
11.Machine Dimension: 680mm x 660mm x 620 mm
12. Machine Net Weihgt : 90 KG Gross weiht : 120KG

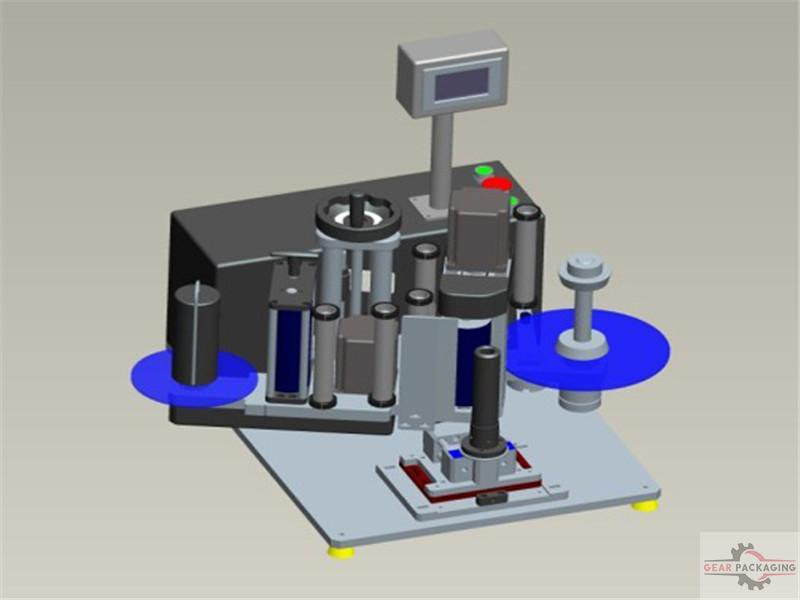

This labels applicator is suitable for soft tube labeling. The labeller model GP-STL10 machine is operated stably and reliably with high precision. It is one kind of semi-auto machine which fed tube by hand. The prime combination has precision, stability, safety, easy operation and flexibility.
Application of Semi-auto Labeling Machine for Soft Tube Labeling Machine:
1. Suitable for Soft Tube such as maquillage, facial cleanser, medicine, etc
2.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.
Function of tube labeling machine
1.Sudden stop：Power to control the machine
2.Cylinder:Push the product near the labelling station, after finishing labeling return the product;
3.Labeling accuracy adjusting:Adjust the angle between product and labels to ensure the labelling accuracy;
4.labeling head：Core part for labeling machine to label product
5.HMI: Parameters setting
6.Electric Box：Electric-pneumatic controlling center
7.Labels covering system: cover and pressure the labels on the products;
1.Labels plate: Holding the rolls of labels；
2.Brake：Fix the labels to ensure the tension
3.Roller:Winding the labels to ensure the tension
4 Labels pressure：Pressing the labels to ensure the tension of labels;
5.Eye Sensor：Move the sensor back and forward;
6.Traction Structure:Drawing the labels bottom paper and provide labels-peeling power 。
7.labels-peeling plate:To peel the labels
8 Labels-pressing structure：Pressuring labels
9.Recycling system: To recycle the bottom paper;
10.Vertically adjusting：Adjusting the height of labeling head
►Suitable for labeling Soft Tube object in different sizes.
►Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
►Putting the Soft Tube to the holder by manual and fix the bottle; pressing the off-on switch;
►Small size labeling machine, easy to operate
Specification of cosmetic pharmaceutical plastic tubes labeling equipment semi automatic hose labels applicator:
1. Suitable for Soft Tube such as maquillage, facial cleanser, medicine, etc
2.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.
Function of tube labeling machine
1.Sudden stop：Power to control the machine
2.Cylinder:Push the product near the labelling station, after finishing labeling return the product;
3.Labeling accuracy adjusting:Adjust the angle between product and labels to ensure the labelling accuracy;
4.labeling head：Core part for labeling machine to label product
5.HMI: Parameters setting
6.Electric Box：Electric-pneumatic controlling center
7.Labels covering system: cover and pressure the labels on the products;
1.Labels plate: Holding the rolls of labels；
2.Brake：Fix the labels to ensure the tension
3.Roller:Winding the labels to ensure the tension
4 Labels pressure：Pressing the labels to ensure the tension of labels;
5.Eye Sensor：Move the sensor back and forward;
6.Traction Structure:Drawing the labels bottom paper and provide labels-peeling power 。
7.labels-peeling plate:To peel the labels
8 Labels-pressing structure：Pressuring labels
9.Recycling system: To recycle the bottom paper;
10.Vertically adjusting：Adjusting the height of labeling head
►Suitable for labeling Soft Tube object in different sizes.
►Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
►Putting the Soft Tube to the holder by manual and fix the bottle; pressing the off-on switch;
►Small size labeling machine, easy to operate
Specification of cosmetic pharmaceutical plastic tubes labeling equipment semi automatic hose labels applicator:
1.Label width: 20-200mm
2.Label length:20-320mm
3.Products Diameter: φ8mm - φ100mm
4.Products Heigth: 10mm -200mm
5.Max Outside diameter of label roll: φ240mm
6.Inside diameter of label roll: φ76mm 7
.Max Labeling speed:25 m/min
8.Accuracy of labeling:±1mm
9.Power: 220V 50Hz 145W
10.Air Pressure: 0.4-0.6 mpa
11.Machine Dimension: 680mm x 660mm x 620 mm
12. Machine Net Weihgt : 90 KG Gross weiht : 120KG
Tubes labeling samples
Label installing demonstration,how to wind the label roll, guide direction
FAQ for model CP-STL10 Labeling machine:
1.Bottom paper broken
There is the close connection between bottom paper broken and labels quality;
Firstly check if there be the damage on the bottom paper like the scratch; In case there is the cut or scratch in the bottom paper change the high quality one ; Advised to choose the Glassine paper also ask for sticker labels supplier to control the die-cutting depth which cannot hurt the bottom paper ;
Secondly:Check if there is the scratch during the labels winding;
Thirdly: The labels sticking together is opt to break down the labels; If so Control the length of labels walking in order to seperate the label one from each other ;
2.Labelling accuracy more than 2mm
There are several factors which can result in the labeling error such as Labels deviation/unparallel between labels rolls and product delivery direction/traction wheels slippery/labels-covering wheel not aligned with labels etc ;
At first check out the causes then find the solution;
If the labels deviates then loose the traction system,Pull back and fro the labels to straighten the labels; Fix the circles which guide the labels in a straight way;
If there is no parellel between labels direction and delivery direction of product,Adjust the tilting angle of labeling head to parallize the labels and products direction;
If there is the traction wheels slippery ,it is caused by attrition of traction wheels as well as loose of locking screws; Just solve the problem by fixing the locking screws;
Products quality ;The error in the edge of bottles will cause the labelling error; To solve it is just to control the product quality ;
3.labelling in non-stop
The labelling process in non stop or an uncomplete way is concerned with the optical eye; Only adjust the sensitivity of eye sensor to solve the problem;
The other possible reason is the deviation of labels so that the eye sensor cannot detect the labels; Adjust the detection position of eye sensor to solve the problem;
Packaging wooden case for semi automatic tube labeling machine GP-STL10
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
