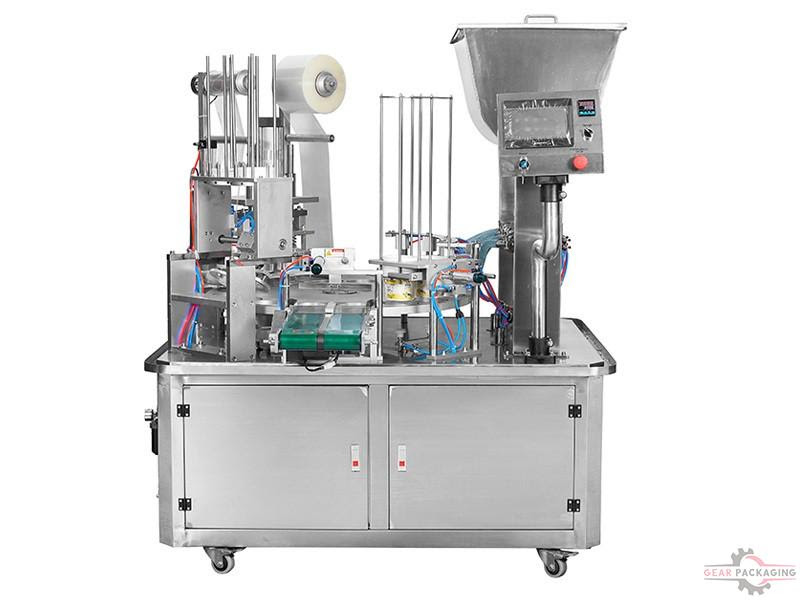

Description:
Cup filling film roll cutting sealing machine automatic rotary dual cups station filler sealer double heads filling small cup sauce seaing equipment
Model:GP-900-F02
Voltage:220V or 380V
Power:1.7KW
Output:About 1600cups/h
Filling accuracy:Less than 1.5%
Tempt:0-400°C
Sealing material:PP PE PET
Dimension:1200*1200*1600mm
Weight:450KGS
Power:1.7KW
Output:About 1600cups/h
Filling accuracy:Less than 1.5%
Tempt:0-400°C
Sealing material:PP PE PET
Dimension:1200*1200*1600mm
Weight:450KGS
Automatic cup filling and sealing machine is our feature products, it is suitable for filling for different kind of cups and different kinds of materials. The basic function usually including cup falling, product filling, cup sealing, output cups. What's more, we will also accept special functions by optional, like gas flushing, vacuum , coding, glass window and etc.We provide personal technical support and hope to have chance to provide you the best solution for your production.
And it is suitable for yogurt, honey, milk, soymilk, mung bean sand, condiment, jam, jelly and so on.
It can be applied to plastic or paper cups, from automatic lift boxes or cups, quantitative filling, heat sealing system, automatic membrane cutting and waste membrane recovery and other functions, and a series of processes can be automatically completed.
It can be applied to plastic or paper cups, from automatic lift boxes or cups, quantitative filling, heat sealing system, automatic membrane cutting and waste membrane recovery and other functions, and a series of processes can be automatically completed.
Main features:
The machine uses intelligent digital temperature control system, filling accuracy error of ± 1.5%, strong sealing. Using WEINVIEW PLC.
1) The frame is made of stainless steel, and the parts contacting with the material are all stainless steel and conform to the food standard.
2) The use of the pneumatic part simplifies the mechanical structure and reduces the trouble. The performance of the machine more stable and safe.
3) Automatic spiral quantitative high precision.
Sealing temperature: adjustable. Ensure a good seal.
4) Pneumatic and the main components of the machine, the use of imported brands to ensure machine service life longer.
The machine uses intelligent digital temperature control system, filling accuracy error of ± 1.5%, strong sealing. Using WEINVIEW PLC.
1) The frame is made of stainless steel, and the parts contacting with the material are all stainless steel and conform to the food standard.
2) The use of the pneumatic part simplifies the mechanical structure and reduces the trouble. The performance of the machine more stable and safe.
3) Automatic spiral quantitative high precision.
Sealing temperature: adjustable. Ensure a good seal.
4) Pneumatic and the main components of the machine, the use of imported brands to ensure machine service life longer.
PLC touch screen. Well-know brand touch screen, Easy control and Intuitive operation.
Fully automatic operation, adjustable production speed, easy operation, safety, improve work efficiency, reduce labor costs.
Pneumatic type piston filler, according to your filling volume, we offer personal filling solution to deal with liquid or paste.
Automatic put pre-cut lid, sealing tight, clean, improve work efficiency, reduce labor costs.
Cup out automatic, work stable, fast speed, reduce labor costs.
Fully automatic operation, adjustable production speed, easy operation, safety, improve work efficiency, reduce labor costs.
Pneumatic type piston filler, according to your filling volume, we offer personal filling solution to deal with liquid or paste.
Automatic put pre-cut lid, sealing tight, clean, improve work efficiency, reduce labor costs.
Cup out automatic, work stable, fast speed, reduce labor costs.
Dual filling heads for two cups at the same time:
Two cups completed and discharge for one time:
Cups sealing result:
Application scope for different cups:
Cup open mouth sealing film rolls for machine testing:
Packaging and shipment:
