Description:
Olive oil blister forming filling sealing machine automatic perfume liquid bee honey capsule film roll former filler sealer customized packaging equipment
Model:GP-A07-02
Lanes quantity: Two
Cutting Frequency (Times/min) 6-20
Max. Forming area and depth (mm) 140*110*14
Stroke (mm) 40-120 (can be designed as customers requirements)
Standard Plate(mm) 80*57 (can be designed as customers requirements)
Air Pressure(Mpa) 0.4-0.6
Air supply no less than 0.2 m³/min
Total Power 380V/220V 50Hz 3.6kw
Main Motor Power (kw) 1.1
PVC Hard Pieces(mm) 0.150.5*140
PTP Aluminum Foil(mm) 0.02-0.035*140
Dialysis Paper(mm) 50-100g*140
Mould Cooling tap water or recycling water
Overall Dimensions(mm) 2300*560*1410(L*W*H)
Weight (kg) 600
Cutting Frequency (Times/min) 6-20
Max. Forming area and depth (mm) 140*110*14
Stroke (mm) 40-120 (can be designed as customers requirements)
Standard Plate(mm) 80*57 (can be designed as customers requirements)
Air Pressure(Mpa) 0.4-0.6
Air supply no less than 0.2 m³/min
Total Power 380V/220V 50Hz 3.6kw
Main Motor Power (kw) 1.1
PVC Hard Pieces(mm) 0.150.5*140
PTP Aluminum Foil(mm) 0.02-0.035*140
Dialysis Paper(mm) 50-100g*140
Mould Cooling tap water or recycling water
Overall Dimensions(mm) 2300*560*1410(L*W*H)
Weight (kg) 600
Liquid Blister Packing Machine is the latest product designed specially for middle and small sized pharmacy factory, preparation room of hospital, health care factory. It is adopted with micro-computer, touch panel operation, frequency speed regulation, adjustable stroke, convenience of operation, firm structure, well function; it is the ideal packaging equipment. It has passed Province technology production authentication.
Machine detail picture before machine run the testing trial:
FEATURES on blister liquid packing machine :
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble,easy maintenance. (The body can be manufactured separately in order to easily transport the machine into workshop)
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
Main Technical Parameters (Liquid Blister Packing Machine):
Model Number YX-70A-02
Cutting Frequency (Times/min) 6-20
Max. Forming area and depth (mm) 140*110*14
Stroke (mm) 40-120 (can be designed as customers requirements)
Standard Plate(mm) 80*57 (can be designed as customers requirements)
Air Pressure(Mpa) 0.4-0.6
Air supply ≥0.2 m³/min
Total Power 380V/220V 50Hz 3.6kw
Main Motor Power (kw) 1.1
PVC Hard Pieces(mm) 0.150.5*140
PTP Aluminum Foil(mm) 0.02-0.035*140
Dialysis Paper(mm) 50-100g*140
Mould Cooling tap water or recycling water
Overall Dimensions(mm) 2300*560*1410(L*W*H)
Weight (kg) 600
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output

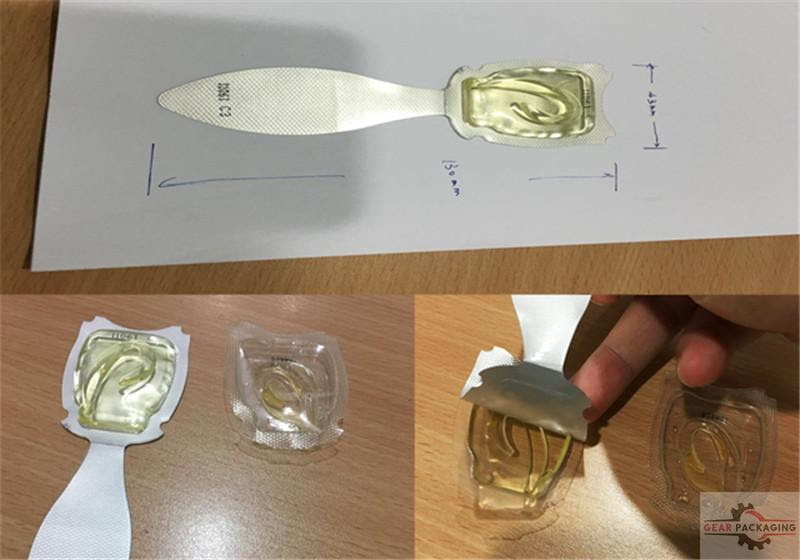

Blister packing samples for oil&perfume&honey
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble,easy maintenance. (The body can be manufactured separately in order to easily transport the machine into workshop)
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
Main Technical Parameters (Liquid Blister Packing Machine):
Model Number YX-70A-02
Cutting Frequency (Times/min) 6-20
Max. Forming area and depth (mm) 140*110*14
Stroke (mm) 40-120 (can be designed as customers requirements)
Standard Plate(mm) 80*57 (can be designed as customers requirements)
Air Pressure(Mpa) 0.4-0.6
Air supply ≥0.2 m³/min
Total Power 380V/220V 50Hz 3.6kw
Main Motor Power (kw) 1.1
PVC Hard Pieces(mm) 0.150.5*140
PTP Aluminum Foil(mm) 0.02-0.035*140
Dialysis Paper(mm) 50-100g*140
Mould Cooling tap water or recycling water
Overall Dimensions(mm) 2300*560*1410(L*W*H)
Weight (kg) 600
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output
Blister packing samples for oil&perfume&honey
Production line for liquid blister forming filling sealing machine model YX-70A-02
