Description:
Can seamer machines automatic linear cans metal tin aluminum paper sealer seaming equipment
Model:GP-G17A
The material: stainless steel
Capping head 1
The number of sealed cans: one
The speed of sealing: 25-30 per minute
The height of sealing: 40-200mm
The diameter of the available bottle: 35-100mm
The working pressure: AC220V 50/60Hz（AC380V 50/60Hz）
Power: 1.1KW
Weight: 500KG
Size: 3000*900*1700mm
The air source: 0.5MPa
This product mainly applies to the sealing packaging of the round cans with various PET plastic, iron, aluminum, paper and other qualities, it has an advanced design and a reasonable structure which is easily operated, to be a necessary and ideal packaging equipment for food, medicines, tea, chemical engineering and other industries.
The main body of this product adopts all stainless materials, with a simple and beautiful appearance and conforming to the design requirements of the most of the standard production departments.
This product adopts the single or three phase power source, with its power reaching 1.1kw, its various parts and components under the precision machining, the production technologies and others precipitated and continuously improved through the long-time customer experience of our company, and the key part adopts a unique design with high strength, low noise and good sealing performance.
This product all conforms to the regulations of the national standards, the departmental standards and the enterprises standards, and leaves the factory only after passing the strict inspection and the test.
It is of a full-automatic production line design, which can constitute the production lines with the filling system, the weighing and filling system or the labeling system.
Capping head 1
The number of sealed cans: one
The speed of sealing: 25-30 per minute
The height of sealing: 40-200mm
The diameter of the available bottle: 35-100mm
The working pressure: AC220V 50/60Hz（AC380V 50/60Hz）
Power: 1.1KW
Weight: 500KG
Size: 3000*900*1700mm
The air source: 0.5MPa
This product mainly applies to the sealing packaging of the round cans with various PET plastic, iron, aluminum, paper and other qualities, it has an advanced design and a reasonable structure which is easily operated, to be a necessary and ideal packaging equipment for food, medicines, tea, chemical engineering and other industries.
The main body of this product adopts all stainless materials, with a simple and beautiful appearance and conforming to the design requirements of the most of the standard production departments.
This product adopts the single or three phase power source, with its power reaching 1.1kw, its various parts and components under the precision machining, the production technologies and others precipitated and continuously improved through the long-time customer experience of our company, and the key part adopts a unique design with high strength, low noise and good sealing performance.
This product all conforms to the regulations of the national standards, the departmental standards and the enterprises standards, and leaves the factory only after passing the strict inspection and the test.
It is of a full-automatic production line design, which can constitute the production lines with the filling system, the weighing and filling system or the labeling system.
The performance specification
1. The four sealing wheels are adopted for sealing, wherein two knives for hemming, and another two for blank pressing, with a simple principle and convenient adjustment;
2. The mechanical design of the latest generation is adopted, the can body will not rotate in the process of sealing, the sealing hobbing knife rotates to complete the sealing, which is reliable and safe and suitable for the sealing packaging of the fragile products and liquid products;
3. The operation of the hobbing knife and the lifting of the knife rest are controlled by the mechanical cam, with stable and reliable operation
4. The hobbing knife adopts the manufacturing from the 304 stainless steel, with durable service and good sealing performance.
5. The operation interface is very simple to facilitate the operation.
Main features
1. It is a can seamer of the latest generation, with its most important feature that the can body does not rotate when sealing, to avoid that the products in the can may displace and fall out;
2. The operation interface is simple with a reasonable design;
3. It is of high machining precision, and the main body adopts the manufacturing of all stainless steel, conforming to the design requirements of the production departments.
4. It can constitute the production lines with filling, labeling, code-spraying equipment and others, with high production efficiency.
5. It can detect the lower cover automatically and the circuit control design is reasonable.
6. All parts and components, the electrical accessories and others adopt the products from the famous domestic factories, with reliable and stable quality.
The technical parameters
The material: stainless steel
Capping head 1
The number of sealed cans: one
The speed of sealing: 25-30 per minute
The height of sealing: 40-200mm
The diameter of the available bottle: 35-100mm
The working pressure: AC220V 50/60Hz（AC380V 50/60Hz）
Power: 1.1KW
Weight: 500KG
Size: 3000*900*1700mm
The air source: 0.5MPa
Operation panel
emergency stop red indicating light green indicating light
yellow button red button green button
power indicator operation indicator inching operation/off operation/on
Instruction
1. The power indicator (the red indicating light): the red indicating light is on indicating that the equipment is power on and vice versa
2. The operation indicator (the green indicating light): the green indicating light in on indicating that the equipment is in operation and vice versa
3.The emergency stop: in case of emergency, press this button and the equipment stops at once, any other switches do not function, if you want to cancel, turn the button crosswise and it will pop up automatically with the functions recovered
4. Operation/on (the green button): press this button and the equipment will start to operate
5.Operation/off (the red button): press this button and the equipment will stop operation
Inching (the yellow button): this switch is mainly used for debugging the equipment, the equipment will operate when pressing the button and vice versa
The Principle of the Equipment and the Installation Method
1.The principle of the dynamic design of the equipment
This equipment adopts the Y190S-4 asynchronous motor of two-value electrical capacity, with the power of the motor to be 1.1KW and the rotating speed to be 1400r/min. The triangular belt wheel, the toothed wheel, the turbine and other link gear reduces its speed to be 40r/min, the turbine rotates a circle under the effect of the lifting cam to complete a process up and down, at the same time it respectively drives the first and the second rolling and sealing wheels to coordinate with the cam under the speed difference of the two groups of toothed wheels, to complete the whole process of the roll sealing of one can.
2. The principle of the sealing design of the equipment
This equipment adopts the principle of double seam double seaming, utilizing the procedure of the occlusion, folding and depression of the cover side and the can side, to achieve the effect of sealing. The steps are as follows:
(1) Place the can cap on top of the can to make the can edge jogged to the opening at the internal side of the can cap edge.
(2) Utilize the pressure of the lifter to lift the can body and make the can cap jogged to the dog.
(3) The first roll envelops the cap edge inwards, with the one side rotating around the cap edge and the other side exerting a pressure to the axis.
(4) After the first roll completes the operation, the second roll continues to press tight the first rounded seam formed from the first roll into the second rounded seam, the roll sealing is completed.
(5) The lifter is upside down, and the dog is pressed downwards to exit the empty can.

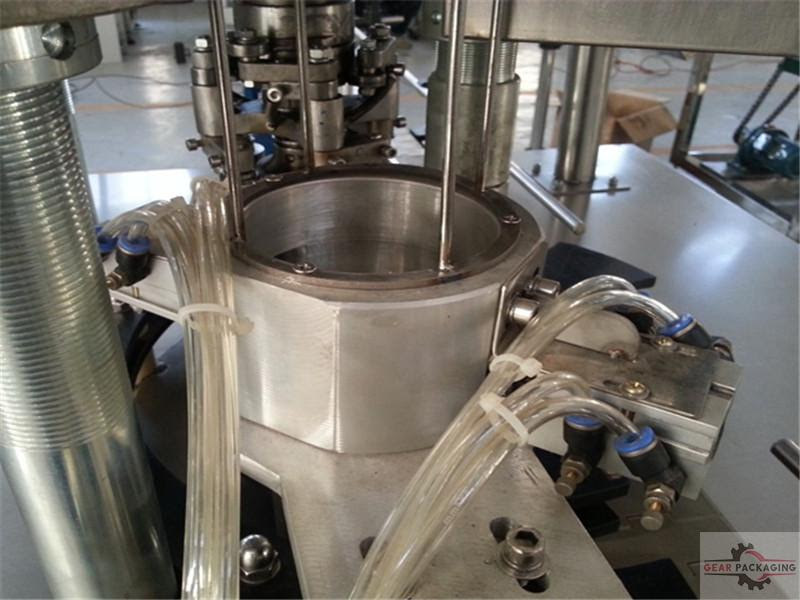

3. The principle of the automatic cover lowering
This equipment is equipped with the automatic photo eye inspection equipment, after the can reaches the position, the photo eye sends the inspection signal to the master control circuit, which sends the relevant signals in accordance with the design to the cover lowering equipment to control relevant actions, so as to perform the automatic cover lowering function. The physical automatic cover lowering equipment and its principle are as shown in the following picture:
1. The four sealing wheels are adopted for sealing, wherein two knives for hemming, and another two for blank pressing, with a simple principle and convenient adjustment;
2. The mechanical design of the latest generation is adopted, the can body will not rotate in the process of sealing, the sealing hobbing knife rotates to complete the sealing, which is reliable and safe and suitable for the sealing packaging of the fragile products and liquid products;
3. The operation of the hobbing knife and the lifting of the knife rest are controlled by the mechanical cam, with stable and reliable operation
4. The hobbing knife adopts the manufacturing from the 304 stainless steel, with durable service and good sealing performance.
5. The operation interface is very simple to facilitate the operation.
Main features
1. It is a can seamer of the latest generation, with its most important feature that the can body does not rotate when sealing, to avoid that the products in the can may displace and fall out;
2. The operation interface is simple with a reasonable design;
3. It is of high machining precision, and the main body adopts the manufacturing of all stainless steel, conforming to the design requirements of the production departments.
4. It can constitute the production lines with filling, labeling, code-spraying equipment and others, with high production efficiency.
5. It can detect the lower cover automatically and the circuit control design is reasonable.
6. All parts and components, the electrical accessories and others adopt the products from the famous domestic factories, with reliable and stable quality.
The technical parameters
The material: stainless steel
Capping head 1
The number of sealed cans: one
The speed of sealing: 25-30 per minute
The height of sealing: 40-200mm
The diameter of the available bottle: 35-100mm
The working pressure: AC220V 50/60Hz（AC380V 50/60Hz）
Power: 1.1KW
Weight: 500KG
Size: 3000*900*1700mm
The air source: 0.5MPa
Operation panel
emergency stop red indicating light green indicating light
yellow button red button green button
power indicator operation indicator inching operation/off operation/on
Instruction
1. The power indicator (the red indicating light): the red indicating light is on indicating that the equipment is power on and vice versa
2. The operation indicator (the green indicating light): the green indicating light in on indicating that the equipment is in operation and vice versa
3.The emergency stop: in case of emergency, press this button and the equipment stops at once, any other switches do not function, if you want to cancel, turn the button crosswise and it will pop up automatically with the functions recovered
4. Operation/on (the green button): press this button and the equipment will start to operate
5.Operation/off (the red button): press this button and the equipment will stop operation
Inching (the yellow button): this switch is mainly used for debugging the equipment, the equipment will operate when pressing the button and vice versa
The Principle of the Equipment and the Installation Method
1.The principle of the dynamic design of the equipment
This equipment adopts the Y190S-4 asynchronous motor of two-value electrical capacity, with the power of the motor to be 1.1KW and the rotating speed to be 1400r/min. The triangular belt wheel, the toothed wheel, the turbine and other link gear reduces its speed to be 40r/min, the turbine rotates a circle under the effect of the lifting cam to complete a process up and down, at the same time it respectively drives the first and the second rolling and sealing wheels to coordinate with the cam under the speed difference of the two groups of toothed wheels, to complete the whole process of the roll sealing of one can.
2. The principle of the sealing design of the equipment
This equipment adopts the principle of double seam double seaming, utilizing the procedure of the occlusion, folding and depression of the cover side and the can side, to achieve the effect of sealing. The steps are as follows:
(1) Place the can cap on top of the can to make the can edge jogged to the opening at the internal side of the can cap edge.
(2) Utilize the pressure of the lifter to lift the can body and make the can cap jogged to the dog.
(3) The first roll envelops the cap edge inwards, with the one side rotating around the cap edge and the other side exerting a pressure to the axis.
(4) After the first roll completes the operation, the second roll continues to press tight the first rounded seam formed from the first roll into the second rounded seam, the roll sealing is completed.
(5) The lifter is upside down, and the dog is pressed downwards to exit the empty can.
3. The principle of the automatic cover lowering
This equipment is equipped with the automatic photo eye inspection equipment, after the can reaches the position, the photo eye sends the inspection signal to the master control circuit, which sends the relevant signals in accordance with the design to the cover lowering equipment to control relevant actions, so as to perform the automatic cover lowering function. The physical automatic cover lowering equipment and its principle are as shown in the following picture:
Install the conveyor chain, check whether it is linear after the installation and is of proper tightness
1.The chain of each section is connected and fixed by a pin (similar to the watch chain)
2.The conveyor will cross the base
3.The chain board of each section of the conveyor is connected by the pin
4.The screws can be adjusted to tighten and lossen the conveyor
5.After being connected with the pin, it is hammered tight
.
6.The conveyor and the main equipment are connected and fixed by two screws
7.The installation of the conveyor rails
8.The installation and fixed device of the rails
9.Power on the conveyor motor (connect with the U1 and U2 terminal)
10.Finally, after powering on and airing on the equipment, it can operate then.
The summary of the position on each electric part: The summary of the position of each connection port:
1. The connection method of the air intake switch is as follows:
1. The connection method of the air intake switch is as follows:
2. The wiring method of the conveyor motor is as follows:
More information send us email for detailed manual book on cans sealing machine ;
