Mineral water rinsing filling capping production line rotary small bottles automatic rinser filler capper bottling machinery 12-12-5 monoblock

Description:

Mineral water rinsing filling capping production line rotary small bottles automatic rinser filler capper bottling machinery 12-12-5 monoblock

Small mineral water rinsing-filling-capping monoblock rotary filler equipment
Model GP-12-12-5
Capacity （500ml）（b/h） 6000
Filling precision ＜±5MM
The size of bottle（mm）Diameter ofφ50-φ100；height：150-320
Suitable cap shape Plastic screw cap
Water pressure of washing bottle （Mpa） 0.18
Water of washing bottle（Kg/h） 2500
Gas Source pressure （Mpa） 0.4
Gas Consumption（m3/min）0.4
Total power（KW）6.57
Total weight （Kg）550
Dimension （mm） 3200×2100×2250

Rotary water filling machine three in one (Rinsing filling capping)
(According to all your requirements , we offer you the specifications as follows for your reference)

This series equipment is used in the production of non-carbonated drink, such as mineral water and purified water, etc. Washing, filling and capping are integrated into one machine.

Feature of bottles filling line
(1) The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
(2) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle"s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
(3) The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
(4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
(5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
(6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.
Working principle:

When bottles are sent to the machine by conveyor continuously, they firstly are delivered to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and turn over 180°to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by  middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.
Specification of rotary filling machine three-in-one

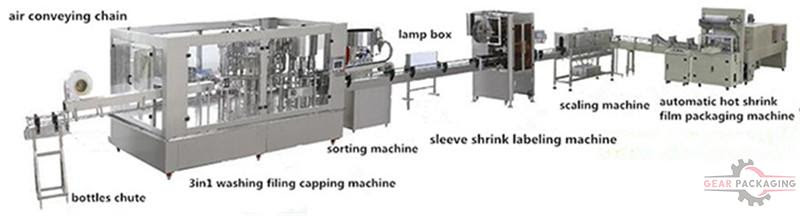

Water filling line illustration

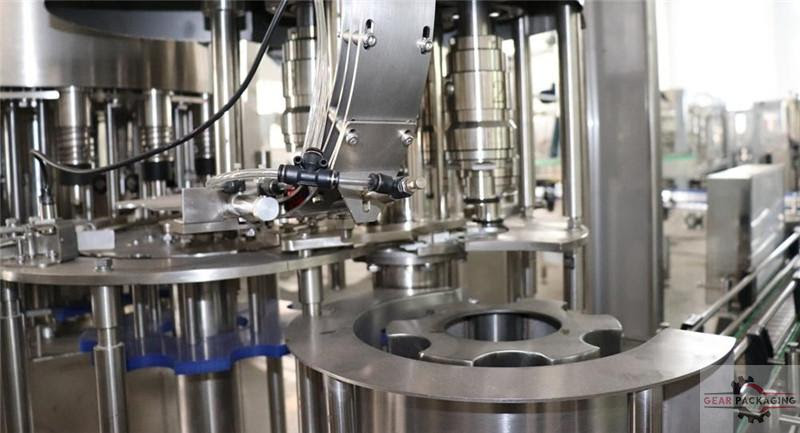

Machine three in one monoblock in customer's factory:

Customer’s bottles samples

Bottles filling capping labeling samples

Application bottles:

Spare took box:

Wooden case packing for three in one filling line small mineral water

After sales service
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
