Description:
LED labeling machine automatic wooden handle rods LED light bulb sticker long tube applicator customized labeler labeling equipment
Model GP-CLM3
Stick to mark accuracy:±1 mm;(do not contain a product, label error margin)
Apply product size:￠ 20 the ≤ product diameter ≤￠ 150 mms;
Apply label size:15 ≤ width ≤ 150 mmses, length ≥ 20 mms;
Production speed：15-30pcs/Min
Rated voltage:220V/60Hz
Total power:1KW
Dimension:2250*1750*1550mm（L*W*H）
Air pressure: 0.7 MPa
Weight:About150 Kg
A label (as distinct from signage) is a piece of paper, polymer, cloth, metal, or other material affixed to a container or product, on which is written or printed information or symbols about the product or item. Information printed directly on a container or article can also be considered labeling.
Labels have many uses, including providing information on a product's origin, manufacturer (e.g., brand name), use, shelf-life and disposal, some or all of which may be governed by legislation such as that for food in the UK or USA. Methods of production and attachment to packaging are many and various and may also be subject to internationally recognised standards. In many countries, hazardous products such as poisons or flammable liquids must have a warning label.
Labels may be supplied separately or on a roll or sheet. Many labels are pre-printed by the manufacturer. Others have printing applied manually or automatically at the time of application. Specialized high speed label printer applicators may be used to apply labels to packages; these and other methods may be subject to recognized standards.[8][9] Some labels have protective overcoats, laminates, or tape to cover them after the final print is applied. This is sometimes before application and sometimes after. Labels are often difficult to peel and apply. A label dispenser can speed up this task.
Labels can be attached by:
Heat activated adhesives: for example, "in-mold labeling" can be part of blow molding containers and employs heat activated adhesives. Hot melt adhesives are also used.
Pressure-sensitive adhesives (also called PSA or self-stick) are applied with light pressure without activation or heat. PSA labels often have release liners which protect the adhesive and assist label handling.
Rivets used to attach information plates to industrial equipment.
Shrink wrap for printed shrinkable labels placed over packages and then heated to shrink them.
Sewing for fabrics such as clothing, tents, mattresses and industrial sacks.
Wet glue such as starch, dextrin, PVA or water moistenable gummed adhesive.
Yarn, twine or plastic tie, usually referred to as a swing tag.
Static cling, where "stickers" have a static charge enabling them to attach without adhesive to smooth surfaces such as glass.
Above all different kinds of labels require different model of labelling machine from GEAR PACKAGING SOLUTION. The model GP-CML3 labeling machine is specially designed for the pressure-snstive adhesive labels which stickers to the wodoen handles by dispensing the labels on the objects firstly;
Customer's samples like mob/broom wooden handle&albels:
Machine drawing for customized wooden rod automatic labeling machine according to customer's samples:
NOTICE before using MODEL GP-CLM3 labeling machine*
1: Before the machine is plugged in, make sure the power switch is in the 【close】 state, and then follow the instructions.
2: The machine should be wiped with dry rags if the machine does not run for a long time, ban using corrosive substances.
3: It is strictly prohibited to splash liquid into the electricity box of the machine, so as to avoid corrosion of internal electrical components and resulting in short circuit.
4: The appearance of the equipment should have no deformation, damage or rusting,the rotating shafts should be flexible.
5: This machine is using single phase AC 220V, the power plug is flat 3 inserts and socket should have ground wire.
Basic parameter of broom labeling machines:
Machine parts and components,structure outlook for labeling machine GP-CLM3
Stick to mark accuracy:±1 mm;(do not contain a product, label error margin)
Apply product size:￠ 20 the ≤ product diameter ≤￠ 150 mms;
Apply label size:15 ≤ width ≤ 150 mmses, length ≥ 20 mms;
Production speed：15-30pcs/Min
Rated voltage:220V/60Hz
Total power:1KW
Dimension:2250*1750*1550mm（L*W*H）
Air pressure: 0.7 MPa
Weight:About150 Kg
A label (as distinct from signage) is a piece of paper, polymer, cloth, metal, or other material affixed to a container or product, on which is written or printed information or symbols about the product or item. Information printed directly on a container or article can also be considered labeling.
Labels have many uses, including providing information on a product's origin, manufacturer (e.g., brand name), use, shelf-life and disposal, some or all of which may be governed by legislation such as that for food in the UK or USA. Methods of production and attachment to packaging are many and various and may also be subject to internationally recognised standards. In many countries, hazardous products such as poisons or flammable liquids must have a warning label.
Labels may be supplied separately or on a roll or sheet. Many labels are pre-printed by the manufacturer. Others have printing applied manually or automatically at the time of application. Specialized high speed label printer applicators may be used to apply labels to packages; these and other methods may be subject to recognized standards.[8][9] Some labels have protective overcoats, laminates, or tape to cover them after the final print is applied. This is sometimes before application and sometimes after. Labels are often difficult to peel and apply. A label dispenser can speed up this task.
Labels can be attached by:
Heat activated adhesives: for example, "in-mold labeling" can be part of blow molding containers and employs heat activated adhesives. Hot melt adhesives are also used.
Pressure-sensitive adhesives (also called PSA or self-stick) are applied with light pressure without activation or heat. PSA labels often have release liners which protect the adhesive and assist label handling.
Rivets used to attach information plates to industrial equipment.
Shrink wrap for printed shrinkable labels placed over packages and then heated to shrink them.
Sewing for fabrics such as clothing, tents, mattresses and industrial sacks.
Wet glue such as starch, dextrin, PVA or water moistenable gummed adhesive.
Yarn, twine or plastic tie, usually referred to as a swing tag.
Static cling, where "stickers" have a static charge enabling them to attach without adhesive to smooth surfaces such as glass.
Above all different kinds of labels require different model of labelling machine from GEAR PACKAGING SOLUTION. The model GP-CML3 labeling machine is specially designed for the pressure-snstive adhesive labels which stickers to the wodoen handles by dispensing the labels on the objects firstly;
Customer's samples like mob/broom wooden handle&albels:
Machine drawing for customized wooden rod automatic labeling machine according to customer's samples:
NOTICE before using MODEL GP-CLM3 labeling machine*
1: Before the machine is plugged in, make sure the power switch is in the 【close】 state, and then follow the instructions.
2: The machine should be wiped with dry rags if the machine does not run for a long time, ban using corrosive substances.
3: It is strictly prohibited to splash liquid into the electricity box of the machine, so as to avoid corrosion of internal electrical components and resulting in short circuit.
4: The appearance of the equipment should have no deformation, damage or rusting,the rotating shafts should be flexible.
5: This machine is using single phase AC 220V, the power plug is flat 3 inserts and socket should have ground wire.
Basic parameter of broom labeling machines:
Machine parts and components,structure outlook for labeling machine GP-CLM3
►First step: if the electric eye falls on the gap, the current red value is 144.
►Second step: When the electric eye falls on the label, the current value of 4 red.
►Third step: adjust the “set value”,
About 1/2 of the sum of the value that the electric eye falls on the backing paper (between the tested object and the gap of the tested object) and the value that the electric eye falls on the mark (on the tested object)
“Set value” is (144 + 4) / 2 = 74, adjusting the “manual button” can adjust the “set value” to about 74
►Forth step four: move the gap position of the mark on the detection position of the electronic eye back and forth, then the red “signal light / indicator light”
In case the electric eye of measuring label is not adjusted well or the value setting is wrong or the detected objective is different, it should readjust the electric eye correspondingly. Or the phenomenon of no labeling or continuous labeling is easy to occur.
Troubleshooting
(1) Power supply and power-off: Check the power supply source and the fuse beside the power outlet and the fuse is 16A / 110V. Check whether the power button is pressed (powered off).
(2) When the marking action is abnormal: Check whether the marking position is normal, if normal, then check whether there are foreign matters blocking the action mechanism, and checking each spring is normal or the fence position is normal. Check whether the HMI parameter settings are normal. Check the relevant electric eye is normal.
(3) When the conveyor belt does not run: Check whether the conveyor belt speed is adjusted too slowly, check whether the operating mechanical components are blocked, check the HMI settings and check the automatic star button is on.
(4) When the label on the product is not in the right labeling position on the product,because peeling plate is loose,adjust the clamping sponge axial, it should neither be too loose nor too tight or adjust the spring tension of the brake band under the peeling plate.
(5) If the problem cannot be solved, please contact us for consulting.We will give you the best solution.
Customized LED bulb labeling system application:
Sample LED tube labeling result:

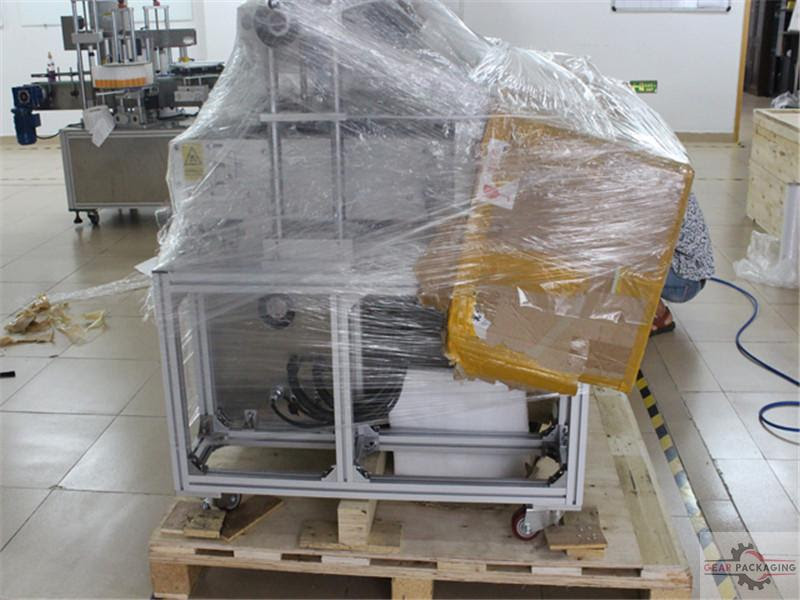

Wooden case packing for labeling machine :
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
