Description:
Bottle/vaporizer/atomizer/cartridge refill machine filling co2 catridge vapor cartomized filling machine with heating tank.
Model
| GP-F99 |
Driven Type
|
Electric
|
Motor system
|
Stempper Motor
|
Power Supply
|
Full voltage AC110 ~ 240V 300W
|
Working Temperature
|
5 – 40 °C
|
Machine working presure
|
0.2 - 1.0 Pa
|
Working Range X/Y/Z(mm)
|
X300*Y300*Z100mm
|
I/O signal port
|
24in / 22out
|
Working Relative Humidity
|
20 – 90% no condensation
|
Control method
|
PTP & CP
|
Extended Storage
|
2 GB
|
External Communication
|
SD Card
|
Speed
|
X & Y/Z (mm/sec): 0.1~800/ 500
|
Interpolation function
|
3 axes(suit for 3D requirement)
|
positioning accuracy
|
0.05mm
|
Repetitive positioning accuracy
|
±0.03mm
|
Size
|
L550*W550*Z580mm
|
Robot Weight (kg)
|
90 -100KG
|
Packaging Type
|
Wooden Case package
|
Function
|
Can connected into production line
|
Machine Structure
|
Filling ,spout pressing ,outer cap capping
|
Throughput
|
Can be adjusted manually
|
Application
|
Cartridges/ vape pens/ Capsules/ Jars /Syringes
|
Working life
|
Over 10 years
|
Standard set include
|
1 x Fill machine
|
1 x Pressure barrel (Can be customized, 8L/4L/500ml, etc)
| |
1 x Prime valve
| |
1 x 3 meters Oil tube
| |
1 x 3 meter Air tube
| |
1 x Custom jig
| |
1 x Filling needle kit
|
Note: The component of the machine you want to add is available, and we can custom the jigs and barrel according to your requirements.
Features of Filling machine MODEL GP-F99:
A: Automatic filling machine, 3 optional heating elements.
1) Heating needle
2) Heating barrel
3) Heating transfer pipe
B: Capping function For CE3 atomizer, G2 cartridge
C: Can fill CBD oil to universal 510 cartridges, empty vape pens, Capsules, Syringes
D: 1 time can fill 100 pcs / 225 pcs (custom jigs)
E: Easy to operate, professional videos on Youtube to view
F: Already test 20000 pcs our CBD oil cartridge , 100% no leakage after filling
G: With english instruction manual to tell how to operate
H: Package with wooden case, no damage
Descriptions of Ocitytimes F1 Filling Machine:
1. Teach pendent in English interface, easy operation.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
4. Size of oil, speed of oil spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
5. According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.
Detail pictures:
A: Automatic filling machine, 3 optional heating elements.
1) Heating needle
2) Heating barrel
3) Heating transfer pipe
B: Capping function For CE3 atomizer, G2 cartridge
C: Can fill CBD oil to universal 510 cartridges, empty vape pens, Capsules, Syringes
D: 1 time can fill 100 pcs / 225 pcs (custom jigs)
E: Easy to operate, professional videos on Youtube to view
F: Already test 20000 pcs our CBD oil cartridge , 100% no leakage after filling
G: With english instruction manual to tell how to operate
H: Package with wooden case, no damage
Descriptions of Ocitytimes F1 Filling Machine:
1. Teach pendent in English interface, easy operation.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
4. Size of oil, speed of oil spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
5. According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.
Detail pictures:
1. Filling capacity: If filling 0.5ml cartridge, it may take about 1-2 seconds to finish one cartridge, around 1800 pcs/hour.
2. Filling precise: +/-0.02ml
3. Handle thick oil: Full heating system (on needle, barrel, hose) to handle thick oil and you can choose one of the heating systems if your oil is not very thick.
4. Operation: Easy to operate, videos to teach you step by step.
5. Barrel options: 300ml, 500ml, 1L, 4L or customized size according to your needs.
2. Filling precise: +/-0.02ml
3. Handle thick oil: Full heating system (on needle, barrel, hose) to handle thick oil and you can choose one of the heating systems if your oil is not very thick.
4. Operation: Easy to operate, videos to teach you step by step.
5. Barrel options: 300ml, 500ml, 1L, 4L or customized size according to your needs.
1)Fully automatic filling available for all cbd cartridges, disposable pens, syringes, oil bottles / containers, capsules etc.
2)Heating system & capping function are avaiable.

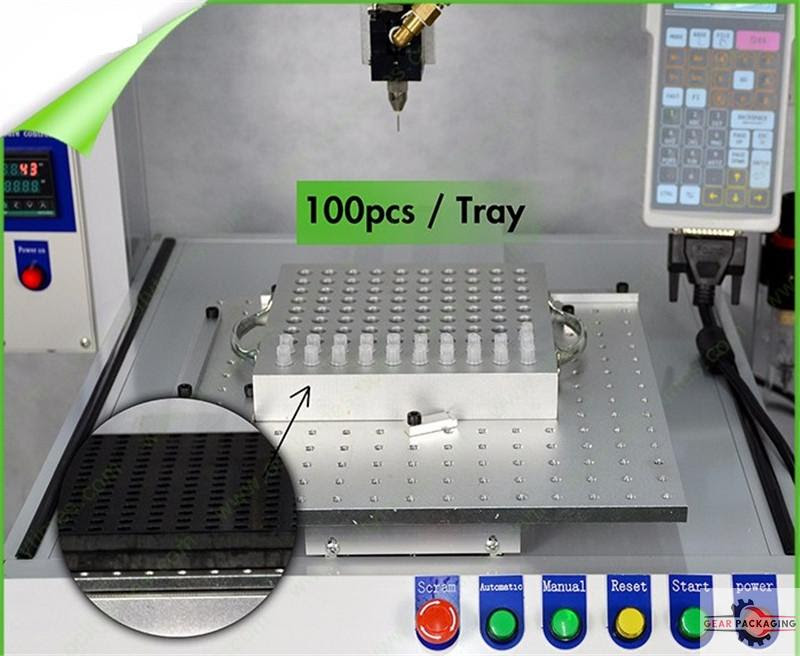

3) Customized tray/jig (100 pcs/tray or 225 pcs/tray or customized accordingly)
4) Can work with all thickness of oil perfectly.
5) High quality & Competitive price & Fast delivery.
6) Total solution: Can fill e cig oil / cbd oil / co2 oil etc.
Main part pictures:
2)Heating system & capping function are avaiable.
3) Customized tray/jig (100 pcs/tray or 225 pcs/tray or customized accordingly)
4) Can work with all thickness of oil perfectly.
5) High quality & Competitive price & Fast delivery.
6) Total solution: Can fill e cig oil / cbd oil / co2 oil etc.
Main part pictures:
Final Sample pictreis:
Other customized usage of filling machine:
Application scope:
