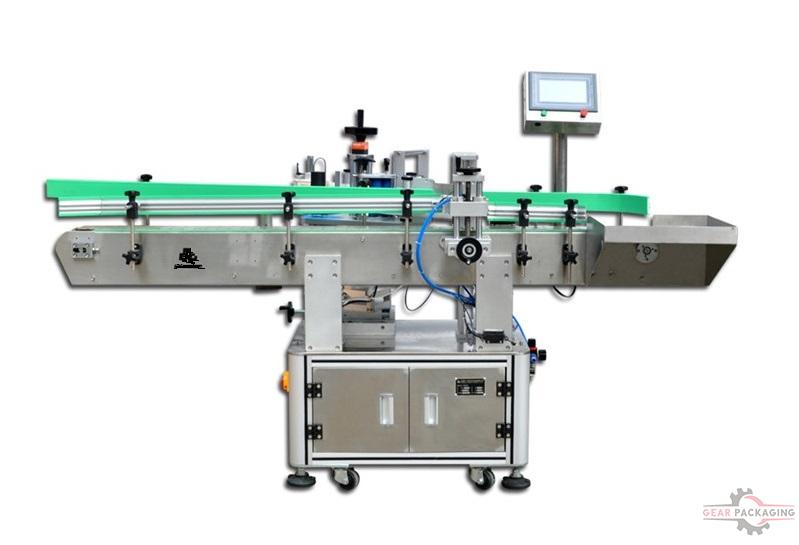

Automatic round bottle labeling machine metal cans tins plastic bottles glass bottles wines beer products Wrap-around Labels Applicator

• Product Description
  This machine is suitable for the foodstuff, medicine ,cosmetics and other light industries of the round bottle label.
  This machine the function is advance, easy operation, structure compact. Adopt to photoelectricity examine, PLC control, Touch screen software operation, feeding, bottle wraping, bottle dispart are all stepless for speed adjust, label nicety; at the same time it has the function of no object no labeling, no label can revise by itself, and automatic to check.
  This machine can using single label, and also can using with other packing machinery for automatic produce on line.
  Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
  Main Technical Parameters
  1.Labeling accuracy ±1mm (not including the label error)
  2.Labeling speed 25～45bpm
  3.Diameter&height of bottles Diameter：φ25mm～φ120mm height：25mm～300mm
  4.Label size Length：20mm～290mm Width：20mm～160mm
  5.Overall size of machine About 1950mm×1200mm×1530mm（L×W×H）
  6.Supply power 220V/50HZ 110V/60HZ
  7.N.W About 185Kg

  The bottle labeler is thus out from as belwo-mentioned characteristics:
  1:The main body of equipment is made of SUS304 and advanced Aluminum products.
  2:The labeling heads is drived by the Server motor that is imported from Japan.
  3:All the light sensor equipment is imported from both Japan and Germany
  4:PLC Controlled by the human-machine interface with 60 memory units
  5:The machine is the best choice for single worker’s operating.
  6:The machine has the function as bottle-uprighting,bottle-distributing、labeling、flating as well as counting.
  7:The position、height、angle of labeling can be adjusted easily.
  8:Equipped with the conveyor belt,the machine is applied to set of the production line.







  Detail and process





  Shipping&after-sales support:


  FAQ:
  Q: Are you a factory or a trading company?
  A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
  Q: Can you send me the video to show how the machine works?
  A: Certainly, we have made video of every machine and uploaded them to Youtube.
  Q: How can I know your machine works well?
  A: Before delivery, we shall test the machine working condition for you.
  Q: How can I know your machine is designed for my product?
  A: You can send us samples of your product and we test it on machine.
  Q: How can I pay my order?
  A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
  Q: Do you have a CE certificate?
  A: For every model of machine, it has a CE certificate.
  Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.
  ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
  Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
  The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
  After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
