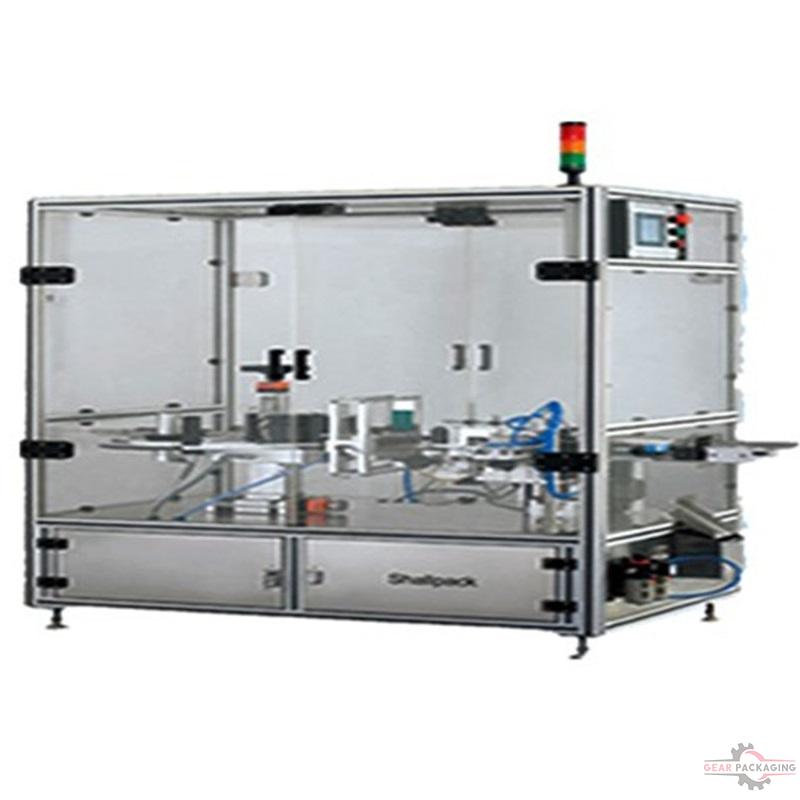

cosmetic components sticker labelling machine rotary bottom labeller equipment lipstick mascara concealer bottles labeling system

Model GP-AA50
Labeling speed Labeling speed: 60 units/minute
Label accuracy ± 1 mm
Max. label width 100 mm
Max. label length 300 mm
Min. container width 10 mm
Max. container width 40 mm
(customization for ≥ 40mm
Min. container height 1 mm
Max. container height 180 mm(customization required for ≥ 180)
Inner label diameter φ76 mm
Outer label diameter Φ350 mm
Weight:750kg
Machine size (LxWxH) L1700xW860xH1800 (mm)
Power 220 V 50 Hz 2000 W
►Features of GP-AA50 Lipstick bottom labeling machine:
1. For labeling bottoms of cosmetic products.
2. Controlled by accurate servo motor, labeling speed reaches 60 units/minute.
3. Fine cam indexing unit to guarantee labeling accuracy.
4. One rolling device for all the products. To label another product, just need to change the clamping device.
5. Unique label absorbing system, making the labeling fast and accurate.
6. The frame is made of aluminum for dust-proofing and safe operation.
7. Option: Elimination system to eliminate unqualified labeled products.
8. Option: movable printing device for date or code.

►Process of cosmetic components labeling machine:


1. Bottles feeding system; 2. Starwheel 12stations;  3. Output system; 4. Labeling part;
5. Date printer; 6. Sucktion-labeling process; 7. Inspection; 8. Rejection; 9.Unqualified product bin
Products are sent from the up stream conveyor (or manual loading)→transported by conveyor→infed in the rolling device→signal detecting→the signal of product detection (label absorbing for preparation) →label is sent rapidly on the required position→inspecting→detecting→qualified products are discharged by the conveyor.
Model GP-AA50 Sticker labels applicator machine structure
A.Labeling station
Servo motor: YASKAWA (Japan)
Servo amplifier: YASKAWA (Japan)
PLC: Siemens (Germany)
HMI: WEINVIEW (CN-EN)
Container sensor: KEYENCE (Japan)
Label sensor: SICK (Germany)/LION (America)
B. Uploading:
60W AC motor, speed adjusted by MITSUBI inverter. 2mm smooth belt for transporting the products without making scratches on them, equipped with adjustable rails.
C. Discharging:
60W AC motor, speed adjusted by MITSUBI inverter. 2mm smooth belt for transporting the products without making scratches on them, equipped with adjustable rails.
D. 12 station batch-type divider, maximum labeling speed
60units/minute,driven by PANASONIC motor.
E. Adjustable label printing device:
Knob for horizontal adjustment, vertical adjustment device is installed in the
printing frame.
F. Rolling device:
For all the products. To label another product, just need to change the clamping device.
G. Machine cover:
The frame is made of aluminum, for dust-proofing and safe operation. Equipped with universal wheels for easy movement.
H. Optional:
Inspection system and elimination device, to eliminate products that are not labeled.
►Specifications of bottom sticker labels labelling equipment:
Model GP-AA50
Labeling speed Labeling speed: 60 units/minute
Label accuracy ± 1 mm
Max. label width 100 mm
Max. label length 300 mm
Min. container width 10 mm
Max. container width 40 mm
(customization for ≥ 40mm
Min. container height 1 mm
Max. container height 180 mm(customization required for ≥ 180)
Inner label diameter φ76 mm
Outer label diameter Φ350 mm
Weight:750kg
Machine size (LxWxH) L1700xW860xH1800 (mm)
Power 220 V 50 Hz 2000 W
Note: the above specifications are only for reference. Actual label and bottle samples are to be provided for final confirmation.
Cosmetic components samples:

► Main Electrical Parts List

#	Item	Brand
1	Human interface	WEINVIEW (Taiwan)
2	Servo Motor	YASKAWA (Japan)
3	Servo driver	YASKAWA (Japan)
4	Servo Motor (for positioning unit, optional)	MITSUBISHI (Japan)
5	Servo Motor	MITSUBISHI (Japan)
6	Driving motor for bottle separating unit	PANASONIC (Japan)
7	Motor reduction gearbox	PANASONIC (Japan)
8	Driving motor for round containers (optional)	PANASONIC (Japan)
9	Motor reduction gearbox	PANASONIC (Japan)
10	Motor for active sponge roller	Wanshsin (Taiwan)
11	Motor reduction gearbox	Wanshsin (Taiwan)
12	Motor for conveyor	Haitec-GR
13	Motor reduction gearbox	Haitec-GR
14	PLC	SIEMENS (Germany)
15	Inverter	DANFOSS (Denmark)
16	Switch	MW (Taiwan)
17	Label sensor	SICK/LION
18	Container sensor	KYENESE (Japan)
19	Air service unit	FESTON
20	Universal self - reset converting switch	MOELLER (Germany)
21	Emergency switch	Schneider (French)
22	Air switch	Schneider (French)
23	AC contactor	Schneider (French)

Lipstick samples pictures, labeling result,

The variety of models, colors and quality of lipsticks that exist today is incredible. In order to help users make sense of their products, lipstick manufacturers place valuable information about their product on lipstick stickers. So, this tiny piece of paper can help consumers a lot when determining which lipstick to buy.
