Cabel wire labeling machine Electronic wire label stickers folding applicator semi automatic cable tube labeler equipment

Description:

This labeling wire cables machine is used for the folding and labeling of wiring cables,harnesses flags and round bars in the electronics industry.
Technical Parameter
Model GP-CLM01
Labeling  Accuracy ±0.5mm
Labeling Speed 5-35pcs/min
Applicable Dimensions Can be customized according to the diameter of the wire
Applicable Labe Size :Length:10-60mm
Power Supply 220V/50HZ
Weight 70KG
Machine Size(LxWxH) About 550*420*780mm
Delivery Time :3 Days
Type Manufacture, Factory,Suppier
Packaging Wooden box
Shipping Method Sea.Air and Express

How the machine works:
Labeling machine is based on PLC as the core, receiving signals and controlling the work of all systems. When stepping the pedal switch, the signal will be sent to the PLC and processed according to a set of programs.
Then complete the processes of stripping label and feeding label by starting on the stepper motor control system. At the same time, the label position sensor (also known as electric eye) will always pay attention to the distance by the label going through.
When a label goes through, the sensor will send the signal to PLC immediately. Then the PLC, according to a set of programs, sends the signal to stepper motor control system to stop and starts on the labeling system so as to complete the process of labeling.
Working principle：

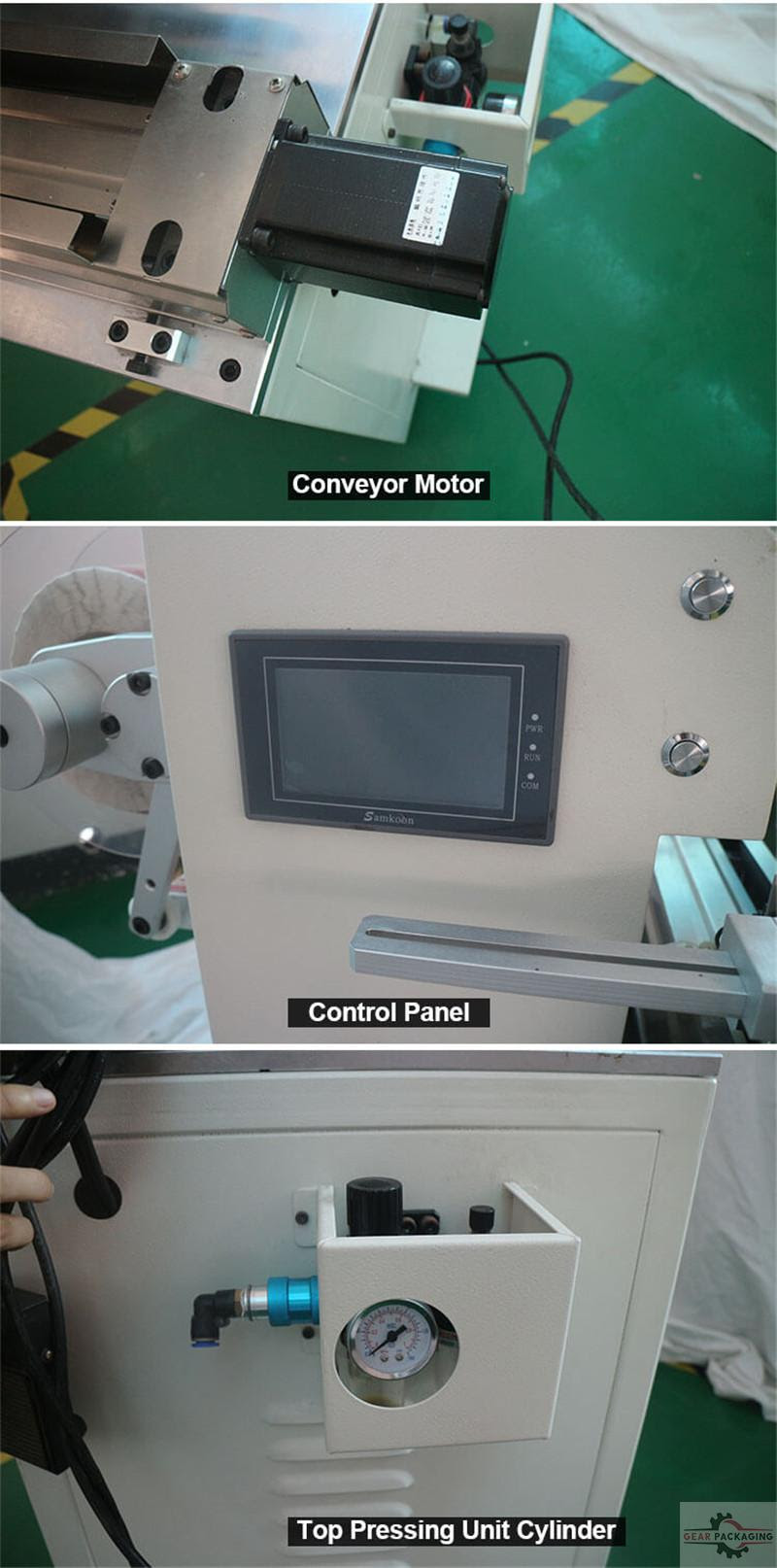

►Transmission system: The stepper motor provides power to strip labels through the synchronous belt driving the traction mechanism and the material receiving mechanism, so as to achieve stripping labels and recycling the Glassine backing sheet.
►Control system: This machine is controlled by using electric and gas. The signal from electric eye (SICK sensor) and pedal switch will be transferred to PLC for processing, in order to achieve all processes of stripping labels, labeling and counting.
Application of wire labeling machine:
Product Applicable: The long round products which must be labeled with paper label or film label on the surface;
Industries applicable: Widely used in Electric, Medicine, Plastic, industries etc.

Notice before using the wire labeling machine:
►Make sure the power supply voltage (AC220V) and the air pressure 4-6kgf before power on, and the external power supply must be grounded reliably.
►Do not block the chassis cooling holes.
►Non-professional technicians are strictly prohibited from opening the chassis.
►When the device is in operation, physical contact with the movement range is strictly prohibited.
►When the equipment fails, the power switch should be turned off first, and it is forbidden to carry out maintenance.

Labeling samples for wire/caps after being finished by the labeling machine pneumatic labeler:




Shipping transportation packaging of cable labeling machine:


►Guarantee: for all the machine, it claims three years for guarantee. (Excluded from the warranty are problems due to accidents, misuse ,misapplication, storage damage, negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
►Installation: after the machine arrive your factory, if you need,our technician will go to your place to install and  test the machine and also training your worker to operating the machine
(The time of train depend on you worker).  The expenses (air ticket ,food , hotel,the travelling fee on your country)  should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
►After service: If you get the problem on the machine , our technician will go to your place to fixed the machine  as soon as possible. The cost should be in your account.(as above).
