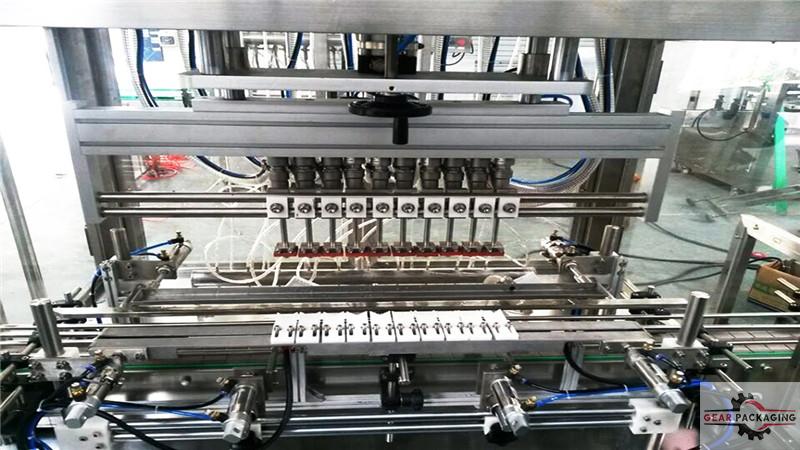

10 heads pneumatic vacuum filling machine Negative pressure sparkling water bottle vacuum filling machine for all kinds of liquid linear automatic filler equipment
Technical parameter of vacuum filling machine 10 heads:
Model GP-VF10H
Filling speed 100 bottlers
Filling scope 0-200ml
Filling precision within±1mm
Working air pressure 4-6kg/m³
Filing nozzles 10 (according to customer)
Electrical power AC220V, 50HZ
Dimension/weight 1200*700*1400mm/400kg
Conveyor belt 4M LENGTH
Model GP-VF10H
Filling speed 100 bottlers
Filling scope 0-200ml
Filling precision within±1mm
Working air pressure 4-6kg/m³
Filing nozzles 10 (according to customer)
Electrical power AC220V, 50HZ
Dimension/weight 1200*700*1400mm/400kg
Conveyor belt 4M LENGTH
This liquid vacuum filling machine as a pure pneumatic equipment, no need of electricity. Liquid vacuum filling machine is one of the most economical filling machines,
especially for perfume, toilet water and other low-dose aqueous products’ filling.
The type of liquid vacuum filling machine is your ideal choice of product line or stand-alone use .
especially for perfume, toilet water and other low-dose aqueous products’ filling.
The type of liquid vacuum filling machine is your ideal choice of product line or stand-alone use .
vacuum glass&plastic bottle filling machine used for follow industry:
1.Cosmetic Industry: Lotion, Lipstick, Shampoo
2.Pharmaceutical Industry: Syrup, Injection
3.Food Industry: essential oil, edible oil, liquid flavouring and etc.
4.Chemical Industry: Liquid Detergent, chemical raw material, Lubricating Oil., paint
Features of 10 heads pneumatic vacuum filling machine for all kinds of liquid linear automatic filler equipment
1.Liquid vacuum filling machine equipped with vacuum liquid level filling systems.
2.This type of liquid vacuum filling machine is pure pneumatic one, in line with explosion-proof requirements.
3.The liquid vacuum filling machine equipped with return barrel of automatic drainage systems.
4.The liquid vacuum filling machine’s filling bottle shape and consistency is noT critical required.
5.Liquid vacuum filling machine with simple structure, easy operation and maintenance
6.The liquid vacuum filling machine filling agent especially for small doses.
7.No need of power, economical type of liquid vacuum filling machine.
Filling theory
This series of machine adopt “Vacuum calibrating liquid level filling” theory. Filling liquid will remain the same no matter the volume of bottles are the same or not.
The series machines easy to operate, the operator simply stuck in the bottle under the filling head or use pedal control, the filling will be executed.
1.Liquid vacuum filling machine equipped with vacuum liquid level filling systems.
2.This type of liquid vacuum filling machine is pure pneumatic one, in line with explosion-proof requirements.
3.The liquid vacuum filling machine equipped with return barrel of automatic drainage systems.
4.The liquid vacuum filling machine’s filling bottle shape and consistency is noT critical required.
5.Liquid vacuum filling machine with simple structure, easy operation and maintenance
6.The liquid vacuum filling machine filling agent especially for small doses.
7.No need of power, economical type of liquid vacuum filling machine.
Filling theory
This series of machine adopt “Vacuum calibrating liquid level filling” theory. Filling liquid will remain the same no matter the volume of bottles are the same or not.
The series machines easy to operate, the operator simply stuck in the bottle under the filling head or use pedal control, the filling will be executed.
Counter Pressure Filling Operations
(Please Reference “Typical Filling Operation” to compare the Differences in Filling Operations)
Once the bottle has been lifted to create a seal between the gasket and the bottle neck during Stage 2, the filling process for pressurized product can begin.
Phase 1 the valve control device opens the back flow circuit, which enables the pressure balancing between the tank and the bottle.
Phase 2 once the pressure between the tank and the bottle have equalized, a spring will open the liquid valve to start the filling process. The valve is designed to allow the liquid to be conveyed gently down the sides of the bottle via the deflector built into the valve. The filling phase is complete once the liquid reaches the end of the channel, (obstructing the air back flow circuit), thus determining the level height in the bottle.
Phase 3 the final leveling is carried out via cam operation (this ensures consistency). Once the cam is triggered, an inert gas is injected into the bottle to create such a pressure to drive any excess liquid back into the holding tank through another inlet in the valve.
Phase 4 a cam will then control the opening of the degassing circuit, before the bottle returns to Step 4 of the “Typical Filling Operation.”
(Please Reference “Typical Filling Operation” to compare the Differences in Filling Operations)
Once the bottle has been lifted to create a seal between the gasket and the bottle neck during Stage 2, the filling process for pressurized product can begin.
Phase 1 the valve control device opens the back flow circuit, which enables the pressure balancing between the tank and the bottle.
Phase 2 once the pressure between the tank and the bottle have equalized, a spring will open the liquid valve to start the filling process. The valve is designed to allow the liquid to be conveyed gently down the sides of the bottle via the deflector built into the valve. The filling phase is complete once the liquid reaches the end of the channel, (obstructing the air back flow circuit), thus determining the level height in the bottle.
Phase 3 the final leveling is carried out via cam operation (this ensures consistency). Once the cam is triggered, an inert gas is injected into the bottle to create such a pressure to drive any excess liquid back into the holding tank through another inlet in the valve.
Phase 4 a cam will then control the opening of the degassing circuit, before the bottle returns to Step 4 of the “Typical Filling Operation.”
Sometime it is replaceable to choose the semi automatic vacuum filling machine GP for perfume filling model GP-PF4H,the basic picture and videos are displayed as below:
