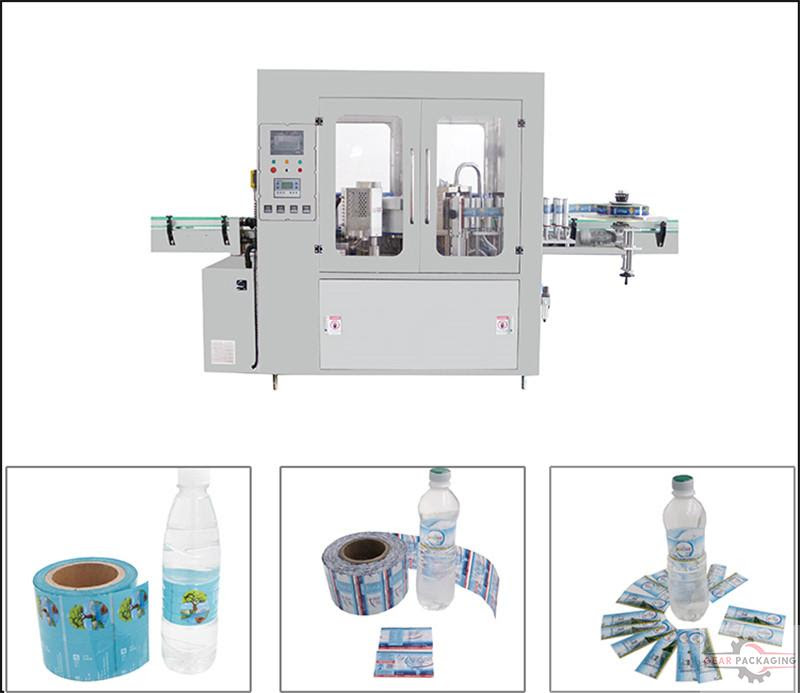

Hot melt adhesive glue labeling machine automatic linear round plactic glass bottle glue hotmelt sticker applicator labeling system

Description:

Hot melt adhesive glue labeling machine automatic linear round plactic glass bottle glue hotmelt sticker applicator labeling system

POPP plastic labels are non-toxic, environment protecting, and look nice and attractive. The technological development of label is rapid. Including o indicating the brand, composition and shelf life, the developers are now working to develop product packaging of low-cost, impact resistance and strong attractive appearance. With the new technology development of shrink packaging system and the emergence of underlying and adhesive of shrink labels, the roll label material OPP plastic label technology provides the processors with a labeling process of low cost, nontoxic and environment protection, low feed consumption and high resolution.
The production process of the roll label material OPP plastic adhesive is short, and its price is affordable. To use the roll label materials such as OPP, BOPP and composite paper to replace the PVC shrink label film; it can achieve more than 30% cost reduction. And it is non-toxic, waterproof. The patterns are not easy to be out of shape. This product is of high class and is the best eco-labels.
Technical parameters:
Model YX-HML400
Bottle type： Glass bottle,plastic bottle
Product speed (b/h)：18000
Label material： OPP/ Pearl film/composite paper
Accuracy error(mm)：±0.5mm
Label size (mm)：（L）20-300mm （H）10-180mm
Bottle size (mm)：Outer diameterφ40-φ80mm heght30-200mm
Label inner diameter (mm)： Φ150mm
Label outer diameter (mm)： Φ500mm（big)
voltage（v)：220/380-420V/three phases optional
power(kw)：9 Air compressed pressure(bar) Min5.0bar Max8.0bar
Air consumption 0.2M³/minute
dimension(mm)：3150L*1800W*2100H weight（kg)2000

Automatic hot melt glue labeling machine ,which is widely supplied for different material of container and label. the label cost is comparatively lower, it can meet the requirements of those users who have variety of the containers .
It is the most economical models in cost to make mass production. The equipment has massively used modularization design concept to  make it easy and simple for users to change the bottles.The linear type mainly labels the round bottles in glass or plastic materials while the rotary type can label not only the round-shaped containers but also the square bottles like liquid detergent container etc.

(1).delivery labeling is controlled by servo motor.
(2)The labeling is cut accurately.
(3)It is easy to exchange the labeling cutter.
(4)Exchange parts is less and quickly.
(5)Check the labeling quickly and don’t waster the labeling .
(6) 1 kg hot melt may use 60000-100000 bottle and reduce the cost.
(7) the label material is OPP,and save cost 1/3.
(8) the machine power is 9KW. so save electric resource.

Electrical appliance configuration specification:

►Installation, operate and maintenance staff must undergo training qualified before use this machine.
exact supply:
As the container is rotated during label transfer, labels are applied tightly.
Process: Infeed bottle → pre-position →label feed →body label→face label →neck label→ finish

What you should obey for installation of hot melt labeling machine:
◆ When machine is arriving, installation staff has to check visually if machine is damaged, such as frame deformation, cabinet affected by damp, crash, etc. If unclear please get in touch with manufacturer to check. And please do advise transport company immediately as soon as find machine damaged.
◆ Please take care of environment when discharge package
◆ Be careful in case of using lifting equipment like forklift, as it takes risks of sliding or unbalance.
◆ Please do watch carefully parts under working table before using forklift or other lifting equipment. Or you may complete handling under guidance of skilled workers.
◆ Do not use cable to lift machine.
◆ Installation staff is not allowed to connect machine to power supply.
◆ 2-2 RULES FOR OPERATOR
◆ Do not take tranquilizer, medicines or alcoholic drinks prone to trance state when operating machine.
◆ Do have a detailed understanding of mechanism, function, control knobs, device before start machine.
◆ It is not allowed to use this machine without our authority or permission.
◆ Pay attention to warnings or other signs at anytime.
◆ Do not start machine in case of pressure abnormity on site.
◆ Do not run machine once it stops working suddenly for some reason. And arrange qualified technician being trained to check where problem goes.
◆ Keep far away from moving parts before machine stops completely.
◆ Do not remove safety guard on machine
2-3RULES FOR MAINTAINER
◆ Not allowed to do maintenance on working table under power.
◆ Not until open the main circuit breaker and switch the main power are you allowed to maintain electric elements.
◆ Take care of touching parts to avoid damage or displacement.
◆ Do check carefully when let machine work alone. Tools are not allowed to be left on working table.
◆ Not allowed to make a cut with flame or hammer at any parts on machine.
◆ Not allowed to measure or forge any parts by yourself (ves) in case that spares are damaged and not repaired. Customer shall ask seller for them (subject to guarantee)
Label loading and winding place and guide direction picture:

Changeover part,sart wheel station

In case of changeovers, enough space shall be left on the end of new reel so as to tape one end on the old one.
 It’s necessary to follow Homing (Ref. 4-4.5) once label position is not synchronized with label guide roller.
1) Firstly stop machine,
Secondly, cut first one complete label respectively on both old and new reels into two along middle line (middle of two eye-marks on both ends of one label) and tape them together. Attention:
Incomplete parts on these two cut labels must make into a whole artwork.
A strip of tape covers in front of two labels in small area.
2) Do tighten quick lock after winding label reel in reference to Label Unwind Path. Then jog machine by manual instead of using Start button, and remove the container corresponding to integrated label with tape. Finally check if cutting position is correct, otherwise operator must run Homing as said (Ref.4-4.5).
3)Use Start button to run machine.
Operation sequence:
1）touch Homing in screen then servo motor works to find proper cutting position  （Mark the position）
2）Confirm that no alarm
3）Remove redundant label and then have cutting roller
vacuum label edge in correct direction.
---Special Explanation to Hot melt Machine
◆ Hot melt machine has one inlet and one outlet in total
◆ Inlet pipe is 4inch long
◆ Normal temperature set as 160℃
◆ In summer temperature set as 150℃
◆ It spends normally 40min to get melting ready, but there are exceptions according to various adhesives.
◆ It’s necessary to keep clean adhesive in melting machine. Any chipped adhesive crumbles, if exist, could not be used any more in production. Otherwise they would block up pipes.
◆ Human must keep far away in case of getting burnt when hot melt machine is running.
◆ It is Technician(s) from melting machine manufacturer that is(are) allowed to do the maintenance to this machine.
Application scope for different bottle and labels

►CLEANING & MAINTENANCE
It is allowed to clean the labelling machine by someone of no mechanical/electric common, yet he has to be properly trained. Attention power must be off when cleaning machine.
For sure for those having knowledge of mechanism and electricity, it takes less chance to be in danger.
We strongly recommend that maintenance should be done by skilled and trained workers.
Attention: Maintenance covers many factors like mechanism, electricity, motor etc.
