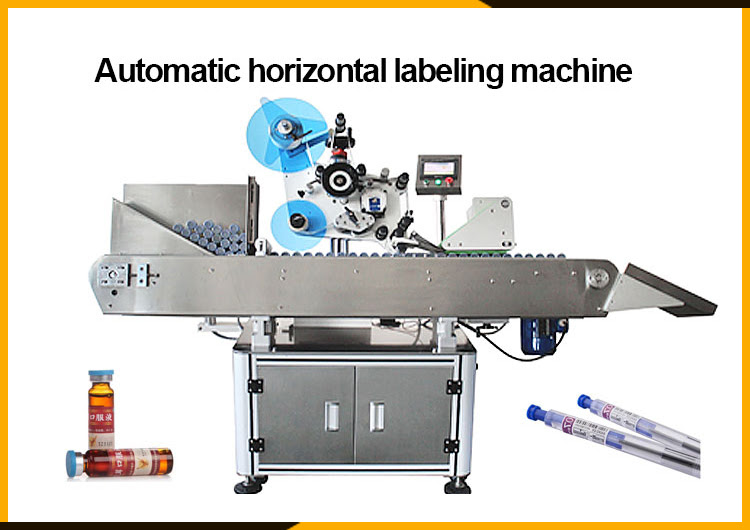

Automatic Horizontal Labeling machine High speed Vial ampoule penicillin plastic tube small round bottle labeling equipment

The following is the standard model technical parameters, other special requirements and functions, can be tailor-made

Technical Parameters	Applicable scope	Technical Parameters	Applicable scope
Applicable labels	Length:20mm~100mm	Applicable product size	Diameter(For round bottles): external diameter φ10mm~30mm
	Width:20mm~130mm
	Outside diameter(mm):φ250mm Inner diameter(mm):φ76mm
Labeling speed	Step forward:100~250pcs/min	Power	Traction step:1020W
	Servo:150~400pcs/min		Traction servo:1470W
Labeling accuracy	±0.5mm
Weight	About 200kg	Applicable power supply 220V	220V  50HZ
Equipment size	(length×width×height)2050mm×650mm×1450mm

This machine is widely used in pharmaceutical,foodstuffbeverage,cosmetic and chemical etc industries.

adhesive labeling machine

Features:

1. PLC control,touch screen operation interface and text mode man-machine interface can be

selected.Simple and reliable.

2. Open frame design,easy to adjust and change the label.

3. Variable speed with stepless motor.

4. Outside and main parts are made of stainless steel,no pollution,easily cleaning,met the

GMP standard.

5. Label count down ( for precise run of set number of labels ) to automatic shut off.

6. Stamping coding device attached.

7. Touch screen control system with job memory.

8. Full-set protecting device keep operation steady and reliable.

9. Adopts AUTONICS photoelectric system,the accuracy of identify label is very high,stable

and reliable.

10. The noise of single machine is less than 50 db

Basic Application

Suitable for the unstable circular cylindrical objects, semi circle labeling, horizontal transmission,horizontal labeling way, increasing stability, improving the labeling efficiency.

Optional printer or inkjet coder attached to the labeling applicator, it can print on the label production date,batch number and barcode printing information.

Optional printer or inkjet coder attached to the labeling applicator, it can print on the label production date, batch number and barcode printing information.

Core working principle: The sensor detects the product passing through after the product is separated by the bottle dividing mechanism,and then returns the signal to the labeling control system, which controls the motor in the appropriate position to send the label to be attached to the labeling position.The product flows through the labeling device; the labeling tape rotates the product; and the label is rolled over; thus a label’s sticking is completed

Operating flow chart

Circuit diagram

Labeling result by high speed horizontal labeling machine,sample pictures

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
