Description:
Horizontal small round bottle labeling machine is applicable for all kinds of round cylinder shape object in food, chemical, pharmaceutical, cosmetic etc industry.
Ampoule bottles vials horizontal labeling machine high speed
specification of horizontal labeling machine with linear conveyor system
1.Model GP-VL-61
2. Label width: 10-135mm;
3. Labeling speed: 30-350bottles/Min;
4. production diameter: 15-150mm;
5. label height: 15-180mm;
6. Labeling accuracy: ±1mm;
7. Power supply: 4200W , 110V/220V , 50/60HZ;
8. Machine size: L2880 * W1700 *H1580 mm;
9. Reel Inner diameter: 75mm;
10. Reel outer diameter: Max 360mm
Machine Characteristic
Our machine is mainly composed of SUS304 chassis; Chain plate conveyor belt; Split bottle screw; Roller conveyor belt; host head; head adjustment etc. Use Siemens PLC, Touch Screen, Servo Motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability. Comply with CMP ,CE specification
1. Construction Material
Ampoule bottles vials horizontal labeling machine high speed
specification of horizontal labeling machine with linear conveyor system
1.Model GP-VL-61
2. Label width: 10-135mm;
3. Labeling speed: 30-350bottles/Min;
4. production diameter: 15-150mm;
5. label height: 15-180mm;
6. Labeling accuracy: ±1mm;
7. Power supply: 4200W , 110V/220V , 50/60HZ;
8. Machine size: L2880 * W1700 *H1580 mm;
9. Reel Inner diameter: 75mm;
10. Reel outer diameter: Max 360mm
Machine Characteristic
Our machine is mainly composed of SUS304 chassis; Chain plate conveyor belt; Split bottle screw; Roller conveyor belt; host head; head adjustment etc. Use Siemens PLC, Touch Screen, Servo Motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability. Comply with CMP ,CE specification
1. Construction Material
Item
|
Parts Name
|
Quantity
|
Brand
|
1
|
Labeling Servo motor
|
1
|
TAMAGAWA（Japan ）
|
2
|
Labeling motor drives
|
1
| |
3
|
Convey motor
|
1
|
VTV
|
4
|
Convey motor gear case
|
1
| |
5
|
Volume label motor
|
1
| |
6
|
Volume label motor gear case
|
1
| |
7
|
Separate bottle motor
|
1
| |
8
|
Separate bottle motor gear case
|
1
| |
9
|
Label photo- electricity
|
1
|
SUNX (PANISONIC)
|
10
|
Label check photo-electricity
|
1
| |
11
|
PLC
|
1
|
Made In Taiwan
|
12
|
Touch-screen
|
1
|
Delta Taiwan
|
13
|
Convey belt
|
1
|
Made in China
|
14
|
In-phase gear belt
|
1
|
Mitsubishi
|
15
|
Coding machine
|
1
|
Pneumatic/Electro motion
|
2. Warranty terms: The seller warranty the machine for one year, and supply one year free spare parts with the machine
3. Spare parts list
3. Spare parts list
No.
|
Designation
|
Specification
|
Quantity
|
Remark
|
1
|
Synchronous belt
|
1 pc
|
For one years spare parts
| |
2
|
Screwdriver
|
Cross type
|
1 pc
| |
3
|
Straight type
|
1 pc
| ||
4
|
Character
|
1box
| ||
5
|
Nipper
|
1 pc
|
The operation manual will be shipped with the goods and in English Version. Before shipping we will camera the video about how-to of the labeling machine as well.
System Parameter
■ Working Environment:
Temperature: 5℃ - 50℃
Humidity: 20% - 90% (No dew)
■ Working Power Supply:
Input: AC 220V ± 10% (50HZ)
Output: DC 24V ± 2V
■ Programmable Logic Controller:
Input: DC 24V 8-point transistor
Output: DC no junction 6-point transistor
◆ Man-machine Interface:
Display: 5.7” FSTNLCD Pushbutton: Touch screen
Friendly operation interface, easy setting. Main Function: Product Count, Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown, Alarm Fault Location and Help Information.
Mahchine drawing:
Application scope:

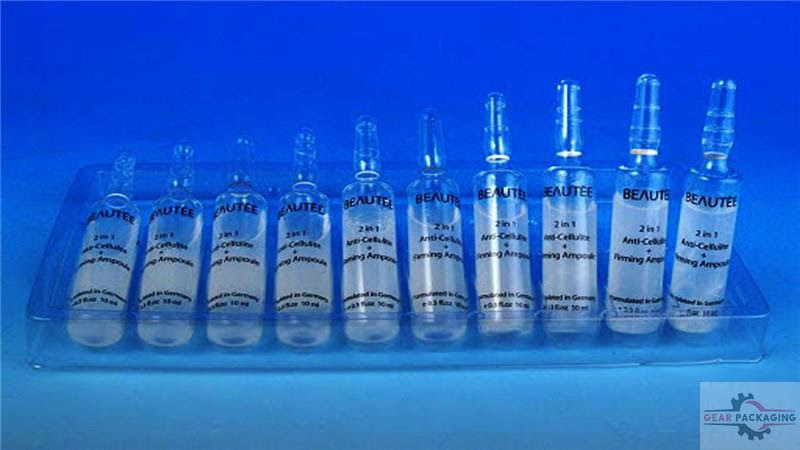

Samples product pictures:
