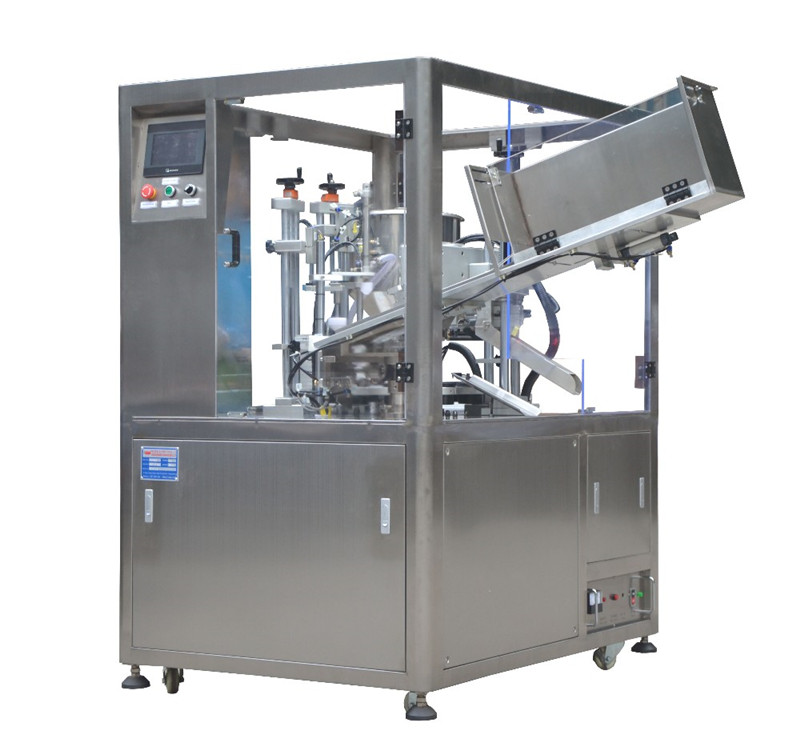

Automatic tube filling sealing machine tubes feeding ant-drop filling machine ultrasonic sealing system for cosmetic food packaging

Description:

Automatic tube filling sealing machine tubes feeding ant-drop filling machine ultrasonic sealing system for cosmetic food packaging

Model GP-H009
Sealing Dia 5-50mm
Output power 2.8kW
Voltage AC220V/single phase 50/60HZ
Machine weight 350kgs
After packaging 380kgs
Machine size 1100*1440*1660mm
Filling Range A:6-60ml, B:10-120ml,C:25-250ml,D:250-500ml (Customer made available)
Control Style PLC control
Time adjust electronic adjust
Packaging Plywooden case packaging

It can complete tube feeding, local color code, filling, sealing and tube out automatically simultaneously. The machine runs smoothly, easy to control and size change over, suitable for producing paste products and has a modern shape, a strong practicability and good value for process.
It is widely used in toothpaste, ketchup, paste food, cosmetic, hair-dyeing paste, art palette and so on industries .
Machine working process:
Auto Tube Loading   →   Auto Tube Orientation  →   Auto Filling    →   Auto Sealing→  Auto Date printing   →    Auto trimming  →   Auto Tube Ejecting ;
Features of automatic tubes filling machine:

Automatic Filling Machines Plastic Tube Filling Machines Features:
1. Easy to operate and maintain.
2. Automatic positioning, filling,  welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment
8. Can be work in time, not need wait the heat time .
Basic parameter of fully automatic tubes feeding anti-dropping filling system:

Model	GP-H009
Sealing Dia	5-50mm
Output power	2.8kW
Voltage	AC220V/single phase  50/60HZ
Machine weight	350kgs
After packaging	380kgs
Machine size	1100*1440*1660mm
Filling Range	A:6-60ml, B:10-120ml,C:25-250ml,D:250-500ml (Customer made available)
Control Style	PLC control
Time adjust	electronic adjust
Packaging	Plywooden case packaging

Details of model YX-AUF400 automatic tubes filling machine:

The filling system is for multipurpose in filling materials from lower viscosity like water to higher viscosity like honey:

Tube feeding system delivers the tubes in automatic way ;

Configuration&Spare parts list of automatic filling ultrasonic sealing machine

Components for model YX-AUF400
Eye Sensor	MATSUSHITA	Japan
Ultrasonic Transducer	Amria	China
Controlling	Omron	Japan
PLC	Delta	Taiwan
Motor	Namwan	China
Main Motor	Gear Head	Taiwan
Cylinder	AirTac	Taiwan
Selenoid	Jaurling	China
Relay	Omron	Japan
Inductive Switch	AirTac	Taiwa

model :	Spare parts	Pic
1	Ultrasonic Powerboard
2	eletric eyes
3	Ultrasonic transducer
4	electromagnetic valve

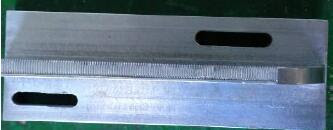

5	upper mould
6	down mould
7	Tube holder
8	Motor/segregator
9	Relay
10	Cylinder ACQ50*20-S-B
11	Cylinder MA20*100-S-CA
12	Cylinder MA20*101-S-CA

Tube samples picture,tube filling sealing result:

After-sales service for ultrasonic tubes sealing machine horizontal filling 5-1000ml semi automatic:

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents,misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician
will go to your place to install and
test the machine and also training your worker to operating the machine
(The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country)
should be on your account and you need paid
for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will
go to your place to fixed the machine
as soon as possible. The cost should be in your account.(as above).
