Description:

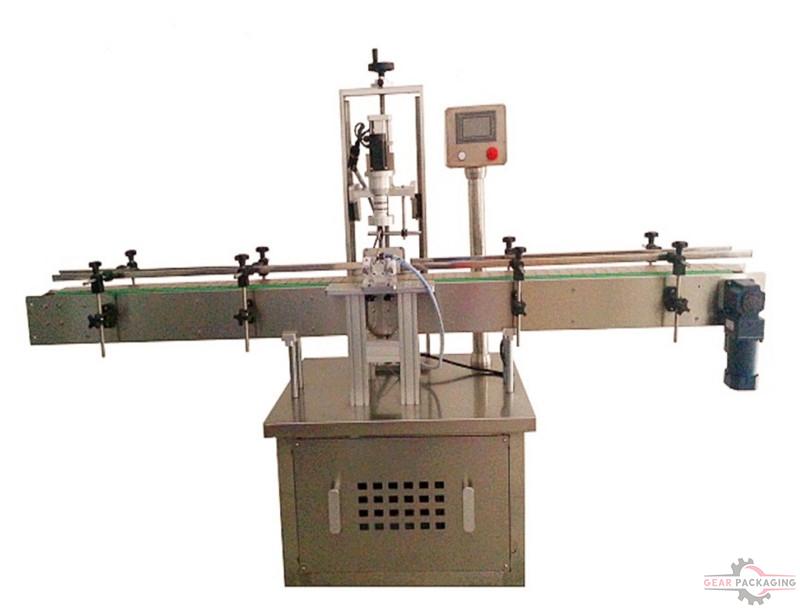

Single head Automatic plastic screw bottle capping machine for shampoo automatic lids screw capper equipment
Model:GP-AV2560
Main Technical Parameters of the bottle capping machine
Model:GP-AV2560
Applicable bottle specification 2-100ML
Production capacity 2400-3000pcs/h
Power 1.5kw
dimensions(mm) 2000*800*1500(L*W*H)
Weight 300kg
Model:GP-AV2560
Applicable bottle specification 2-100ML
Production capacity 2400-3000pcs/h
Power 1.5kw
dimensions(mm) 2000*800*1500(L*W*H)
Weight 300kg
The machine can automatically stop when no bottle to lock, blocking when out of exit,wrong orientation,damage of the bottle.The wresting force can be adjusted when locking different caps.It’s easy to replace the locking heads and thThe machine adopts frequency converter control, the drive mechanism applies cam principle, the disc cutter is positioned, and the screw cap of the round thread cap is applied. On the cover, automatic capping, capping combined with magnetic sheet structure, screw cap does not hurt the capping head cover, easy disassembly, different cover and bottle only replacement of a few components, you can use one machine, and filling machine, labeling machine production line, is the best equipment for food and beverage, medicine, daily chemical, chemical industry aral.
The utility model is mainly used for the rotary cover of various circular plastic, aluminum and iron screw thread covers, and is suitable for different bottle shaped screw caps of food, pharmacy, daily chemicals, pesticides, cosmetics and other industries.e star tray according to different container or bottle caps.
The utility model is mainly used for the rotary cover of various circular plastic, aluminum and iron screw thread covers, and is suitable for different bottle shaped screw caps of food, pharmacy, daily chemicals, pesticides, cosmetics and other industries.e star tray according to different container or bottle caps.
1) The capping machine is designed to achieve the rationalized production objectives. Capping procedure adopts automated control, easy operation, fast production speed and excellent sealing effect (material for PE, PP, PS, PVE, and PET). Capping position is unified, beautiful and neat.
2) Suitable for round containers of pharmaceutical, chemical, food and other industries to cap covers. The machine has equipped with self-test functions- detection of power stability, over-current, over-voltage, over-temperature control protection and phase locking.
Features of the hair conditioner bottle capping machine
1) Power of this machine is adjustable; working status can be displayed in the control panel.
2) This machine adopts disk location on the design of the bottle for clearance campaign, through two sets of magnetic torque Rotary scarf on the orientation of the bottle cap.
3) This machine is an ideal equipment, which caps bottle cover in pharmaceutical, pesticide, daily chemical and food industry, etc.
4) Note: this can also be used for rolling aluminum cover, theft - proof cover and screw cap.
Main Technical Parameters of the hair conditioner bottle capping machine
2) Suitable for round containers of pharmaceutical, chemical, food and other industries to cap covers. The machine has equipped with self-test functions- detection of power stability, over-current, over-voltage, over-temperature control protection and phase locking.
Features of the hair conditioner bottle capping machine
1) Power of this machine is adjustable; working status can be displayed in the control panel.
2) This machine adopts disk location on the design of the bottle for clearance campaign, through two sets of magnetic torque Rotary scarf on the orientation of the bottle cap.
3) This machine is an ideal equipment, which caps bottle cover in pharmaceutical, pesticide, daily chemical and food industry, etc.
4) Note: this can also be used for rolling aluminum cover, theft - proof cover and screw cap.
Main Technical Parameters of the hair conditioner bottle capping machine
Configuration of model YX-AC60 Single head capping machine automatic:
Item
|
Specification
|
Brand
|
Origin
|
Capping motor
|
220V/40W50~60Hz
| Tsongta |
China
|
Bottle distributing motor
|
220V/40W50~60Hz
| ||
Conveyor motor
|
220V/40W50~60Hz
| ||
Belt-fixing motor
|
220V/120W50~60Hz
| ||
Fiber Amplifier
|
60，single head
|
Keyence
|
Japan
|
Delay Relay
|
5s
|
Omron
|
Japan
|
Relay
|
24V
|
Omron
|
Japan
|
Speed Governor
|
Telta
|
Taiwan
| |
Cylinder
|
MA16×25-S-CA
|
Airtac
|
Taiwan
|
Sudden Stop
|
Sneider
|
French
|
Capping samples for bottles,bottle types:
Single head capping machine intergrated with filling machine,completed production line:
Single head capper running with bottle filling machine,combined production line:
Machine esting for sauce production line,filling+capping+labeling
Application scope for single head capping machine modelGP-AV2560:
