Ropp caps sealing machine multi heads glass bottles with metal Roll On Pilfer Proof cap sealer screw capper equipment high speed pharmaceutical machinery

Description:

Capacity 3600-4800bottles per hour
Bottles height 90mm-400mm
Bottles diameter 32mm-90mm
Bottles type Glass bottles with metal caps
Sealing heads 6heads(1head to 8heads can be chosen accordingly)
Bottles broken rate ≤1%
Quality Yield ≧99.9%
Power supply 220V/50HZ 1.5KW(North American power supply customized)
Size 2000*1100*2100MM
Weight: 500KG

The Rotary Chuck Capping system is versatile machine designed to be installed within the existing conveyor line. Rotary Chuck Cappers are available in 1 and 8 heads Standard models. Rotary Chuck Cappers are adaptable to a wide range of caps (Cap Type: Screw or Lug) and containers which makes this a flexible machine with multiple products run on a single line. Rotary Chuck Cappers speed is based on the number of heads, container size, and configuration. The Rotary Chuck Cappers can run from speeds of 15 to 600 containers per minute. Rotary Chuck Cappers designs vary from a rotary centrifugal design to an elevator/hopper version. The Spindle Capping Systems have a unique 8 spindle design combined with the latest technology allows it to automatically place and torque a wide array of cap types (Cap Size: Min 22mm / Max 90mm) to an assortment of containers at higher speeds. The Spindle Capping Systems lowers operational costs and increases the cappers range of adjustability, to accommodate closure sizes from 10mm – 120mm, by eliminating many of the high maintenance parts. The Spindle Capping Systems are ideal machines for nearly every type of screw and lug cap including; flat caps, flip tops, pull spouts, safety caps, sport caps, even over-caps or containers with induction seals.

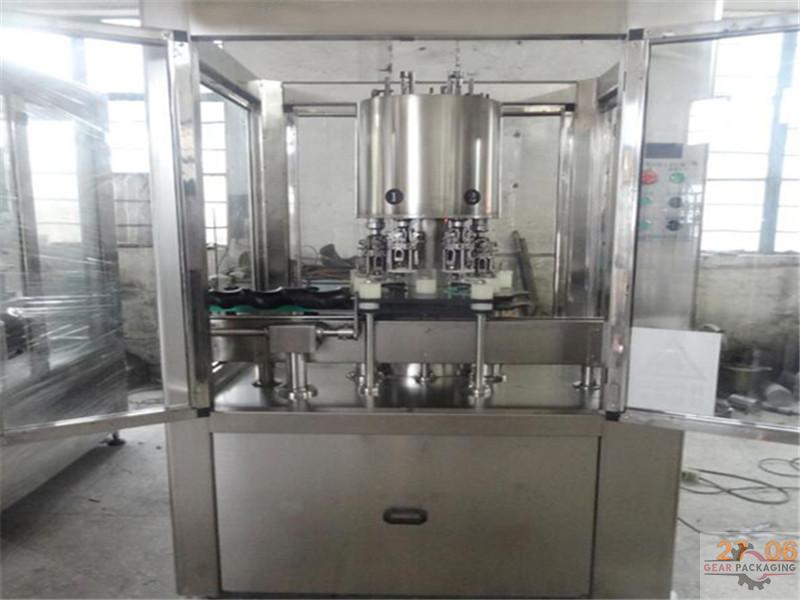

Basic parameter of model GP-AC09-6 Six heads Ropp Caps sealing machine:

Main Features
1. The external surface and main parts of the equipment are made of 304 stainless steel, which is in line with GMP requirements.
2.The unique and smooth cover rail, solid and unique cover mechanism greatly increased the stability, smoothness.
3. The bottles in and out of bottles are equipped with overload protection. Once the bottle is turned down and stuck, the whole machine will stop running the alarm device.
4. The rotary cover head mechanism can adjust the height manually, which is more convenient for bottles of different heights and is also convenient for daily cleaning.
5、Number of capping heads: one, four, six and eight.

The capping machine is a suitable equipment for roll-press-sealing the Aluminum caps for the plastic bottle、pet bottle、as well as glass bottle.It precesses the screw-press capping for the bottle under the rolling press from hobs,automatically feeding bottle、caps,removing the reverse caps .The capped bottle favors the characteristics like the stable capping effect,convenient uncapping,so

that it function as conterfeit and anti-theft.

GP-AC09-6 (Machine can be added with the dust-proof cover according to customer's requirement)
Capacity	3600-4800bottles per hour	Bottles height Bottles diameter	90mm-400mm 32mm-90mm
Bottles type	Glass bottles with metal caps	Sealing heads	6heads(1head to 8heads can be chosen accordingly)
Bottles broken rate	≤1%	Quality Yield	≧99.9%
Power supply	220V/50HZ 1.5KW(North American power supply customized)	Size	200011002100MM

Drawing of ROPP capping working process(taking example as automatic line with conveyor platform)

How to operate model GP-AC09 Single head ROPP capping machine

The feed container moving on conveyor belt are feed into an in feed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.
Salient Features :

Caps vibrating bow,cap feeding system:

The unit is made compact & versatile.
S.S. Slat conveyor
S.S. Elegantly Matt Finished Body
Built in front control panel
Vibratory Bowl
With A/c Frequency Drive

ROPP caps in different sizes for Screw capping

Testing sampels by ROPP capper:

Turntable is builed according to different diameter of bottles,changeove parts:

Customer's plant production line running equiped with ROPP capping machine model: GP-AC09,Multi heads customized builded according to customer's requirements:
