Desktop manual tray sealing machine fast food tray sealer equipment semi automatic plastic box sealer

Description:

Desktop manual tray sealing machine fast food tray sealer equipment semi automatic plastic box sealer

Model:GP-S1000

Supply power (V/Hz) AC 220/50 110/60
Heat seal power (W) 250
Speed 300-500cups /hour
Outer dimension （L×W×H）(mm) 205×265×460
Net Weight (kg) 21KG
1.Good machine for small production required. Use small space, but full functional.

2. Front panel is simple, easy to operate,each function is independent,separate panel postposition.

3  With two functions,buttons and touch for starting.Anyone can operate it, safe and simple.

4  Sealing temperature and time setting control, suitable for all kinds of material.

5. Film temperature control automatically.

6  Both printing and transparent film is workable. Electric tracing sealing film position, film position accurate,and transparent film control length by time.

7. Printing machine is optional.

8. Adopt stainless steel and aluminum alloy material, let it is strong and never rust.

9  Film change quick, suitable for any person.10. Pneumatic control machine,save electric, and suitable for various products.
Basic Parameters of  manual tray sealer:

Sample trays:

http://gearpackaging.com/

Contact:Tony

Cellphone:+86-188-1682-5234

Telephone:+0769-8270-8461

Skype:Gearpacakaging Tony

E-mail:gearpacking@gmail.com

GMP standard Capsules filling machine semi automatic medicine pills making equipment hard soft empty capsule filler

Description:

GMP standard Capsules filling machine semi automatic medicine pills making equipment hard soft empty capsule filler

Model GP-CF03

Maximum capacity 25000 capsules/hour
Capsule size 00#, 0#, 1#, 2#, 3 #, 4 #, 5#
Air pressure 0.4 – 0.6 MPa
Air supply ≥ 0.1 m3/min
Power 2.12 KW
Power supply AC,380V/50HZ 3 phase or customization
Net weight 330 kg
Overall size 1450 x 750 x 1650 mm
Gross weight 400 kg
Packing size 1800 x 800 x 1750 mm

GP series semi-automatic capsule filling machine for small and medium sized pharmaceutical companies, health care products factory, hospital preparation room carefully crafted a set of electricity, gas as one of the new semi-automatic capsule filling machine, novel structure, attractive appearance, body and work tops, stainless steel, the product meets the GMP requirements; machine with programmed control system, touch panel operation (V-type), frequency conversion stepless adjustment of the joint control of pneumatic and electronic automatic counting device can automatically complete the capsule of the U-turn on spaces, separation (cap body torn off), drug filling, locking etc, and filling dose accuracy, easy to operate. Apply powder, granular medicines and health products in capsule filling! Is the ideal semi-automatic capsule filling machine.

Features on capsule filling machine semi automatic model GP-CP03

Main technical parameters of semi automatic capsule filling machine:

Ancillary equipment:

a vacuum pump, air compressor (user-owned)

Capsule inlustration:

Spare parts for semi automatic pharmaceutical making equipment:

GP-CF03 Configuration
Name	Model	Brand	Quantity	Remark
Single-chip vacuum pump	XDSERIES	Shanghai	1
Three-phase asynchronous motor	Y263M2-4	Shanghai	2
Three-phase vertical gear down motor	TJH400W-7.5:1	Jiangmen Taijie	1	Silent
transducer	DVM-2S004G-02	Zhejiang	3
worm and gear down motor(double extension worm)	WPWD-40-15:1	Hangzhou Xuya	1
worm and gear down motor	WPWD-40-40:1	Hangzhou Xuya	1
Transformer	JBK3-63	Zhejiang	1
auxiliary relay	JTX-2C	Zhengtai	2
AC relay	CJX2-12	Huanyu	2
breaker	DZ47-63 D20	Zhejiang	1
breaker	DZ47-63 C6	Zhejiang	1
Urgent stop switch	Y090-11X	Huanyu	1
Control panel	PC	Made by ourselves	1
SUS	304	Puxiang

Capsule samples:

Capsule filling machine semi automatic model GP-CF03 in stock:

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be borne by the buyer and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be borne by the buyer;

http://gearpackaging.com/

Contact:Tony

Cellphone:+86-188-1682-5234

Telephone:+0769-8270-8461

Skype:Gearpacakaging Tony

E-mail:gearpacking@gmail.com

Customized Automatic cosmetic loose powder filling production line

Description:

Automatic cosmetic loose powder filling line
The packing line is widely used in cosmetic powder, talcum powder, loose powder, pressed powder industries;
Suitable for small volume 10-50g powder automatic packing, like cosmetic powder, talcum powder, loose powder, pressed powder and so on;

Main Features
The whole machine line is designed especially for 10-50g powder filling, capping, labeling;
Filling plugging-in and capping machine in one machine, save space and away from pollution;
Full automatic bottle sorting and feeding, lower the cost and at the same time working efficiency increased;
Adopts peristaltic pump, high filling precision. No bottle, no fill, no drop, no leak;
Touch screen, easy operate and adjust human interface. English operation interface;
The machines can work together smoothly or work alone by PLC control;
The line is easy to install, operate, maintenance, and move;
Suitable for single, mass production, but no more than 3 kinds;
All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel;
The machines have emergency stop Button and automatic interrupt device for safe operation;
Labors need: 1-2 workers.
Production capacity:1200-3000BPh (1 nozzle);3600-4800BPh(2 nozzles)
Capping qualified rate:≥99%
Filling precision error:±1%
Labeling precision error:±1mm (exclude product and label error)

Machine detail pictures:

Machine testing picture of each station:

Loose powder sample pictures:

Bulk samples for machine adjusting and tesing purpose:

Intergated with end packaging line according to customer's needs:

Wooden case packing before shipment:

http://gearpackaging.com/

Contact:Tony

Cellphone:+86-188-1682-5234

Telephone:+0769-8270-8461

Skype:Gearpacakaging Tony

E-mail:gearpacking@gmail.com

Automatic cosmetic loose powder filling production line cosmetic make-up loose powder jars packing linear type three heads screw auger integrated with bottom labelling capping weight check system

Description:

Automatic cosmetic loose powder filling production line cosmetic make-up loose powder jars packing linear type three heads screw auger integrated with bottom labelling capping weight check system

Filling part
Filling machine part model GP-PF03
Direction of Movement : Left to Right
Number of Filling Head : 3 Head
Capacity:50-60jars per min(filling volume 1.8g)
Electric Specification:
Main Motor (Stirrer) : 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
Conveyor Motor : 0.5 HP / 415 Volts / 50 Hz.
Vacuum Blower : 1 HP / 415 Volts / 50 Hz.
Servo Motor : 750 Watt
Air Consumption : 4 – 6 Kg.
Pressure Height of Conveyor : 860 mm (+ 50 mm adjustable height)
Machine Dimensions** : 2335mm (L) X 800mm (W) X 2000mm (H) approx
Case Dimensions** : 2700mm (L) X 1000mm (W) X 2400mm (H) approx
Net Weight : 600 Kg. Approx Gross Weight 850 Kg. Approx
± 2 % Filling accuracy on single dose.
All Contact Parts in SS 316
Dust collection facility
Adjustable height of Conveyor Belt.
Low Noise Level, Low Power Consumptions
Electrical supply : Single Phase + Neutral + Earthing
Electrical load : 1.8 KW
Air Pressure : Minimum 4 to 6 bar pressure
The packing line is widely used in cosmetic powder, talcum powder, loose powder, pressed powder industries;
Suitable for small volume 10-50g powder automatic packing, like cosmetic powder, talcum powder, loose powder, pressed powder and so on;

The whole line(Automatic bottom labeling 3 head filling plugging cappingmachine with speed 40-45pcs/min, and clear label sensor)includes mainly four machines which are given as below:
1.Rotary turntable model GP-BS12;
2.Model GP-610B down side labeling machine
3.Model GP-PF03 Three heads filling machine powder auger filler;
4.Model GP-AC45 jars capping machine;
5.Model GP-MT6030A weight check

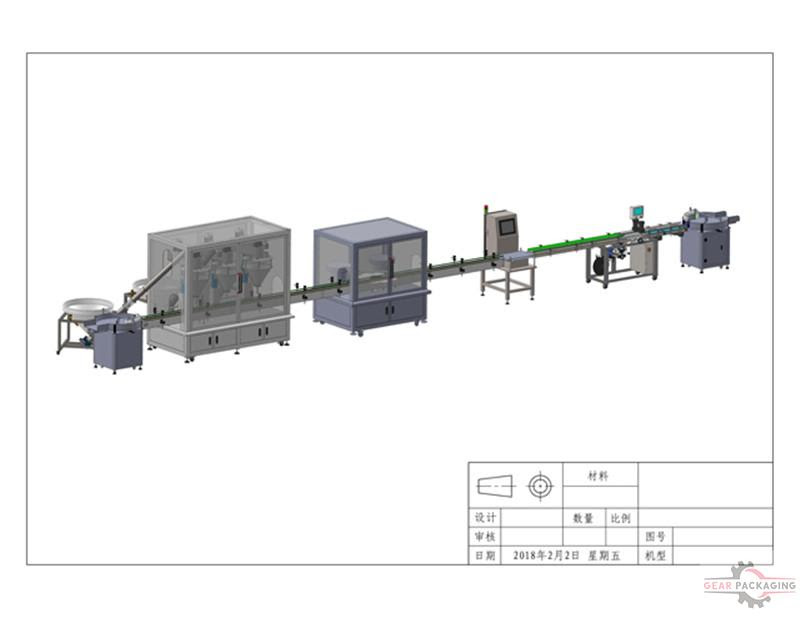

Drawing of machine loose powder filling line based on the samples&filling materials:

Herewith are listed the basic data for machines respectively:

Model GP-BS12 Bottles rotary turntable:
Model GP-BS12
Applicable specifications 20-1000 ml
Bottle diameter φ 10-φ80 mm
The bottle height 85-300 mm
Production capacity 0-100 BPM (speed adjustable)
Voltage 220 v50hz
Power 0.5 kw
Weight 100kg
Machine size 1300*1000*1300mm
Stainless steel SUS304 material
Model GP-610B down side labeling machine:

Name Parameter
Voltage AC220V50/60HZ
Power 500W
Size appearance 1800(L) 700(W) 1800(H) mm
Labeling Speed 200pcs/ min
Labeling accuracy ±1 mm (subject to the roughness of the plant)
Printer to use air 5 kg / cm2
Suitable height of objects 1-100 mm (which can be adjusted by your requirements)
Suitable wide of objects 10-80 mm (which can be adjusted by your requirements)
Model GP-PF03 auger filler equipments:

powder filler screw auger.JPG
Filling part
Filling machine part model GP-PF03
Direction of Movement : Left to Right
Number of Filling Head : 3 Head
Capacity:50-60jars per min(filling volume 1.8g)
Electric Specification:
Main Motor (Stirrer) : 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
Conveyor Motor        : 0.5 HP / 415 Volts / 50 Hz.
Vacuum Blower         : 1 HP / 415 Volts / 50 Hz.
Servo Motor               : 750 Watt
Air Consumption :  4 – 6 Kg.
Pressure Height of Conveyor :  860 mm (+ 50 mm adjustable height)
Machine Dimensions** : 2335mm (L) X 800mm (W) X 2000mm (H) approx
Case Dimensions** : 2700mm (L) X 1000mm (W) X 2400mm (H) approx
Net Weight : 600 Kg. Approx Gross Weight 850 Kg. Approx
± 2 % Filling accuracy on single dose.
All Contact Parts in SS 316
Dust collection facility
Adjustable height of Conveyor Belt.
Low Noise Level, Low Power Consumptions
Electrical supply : Single Phase + Neutral + Earthing
Electrical load : 1.8 KW
Air Pressure : Minimum 4 to 6 bar pressure
Model Caps screw capping machine GP-AC45

1.Power supply 220V;50Hz
2.Power 1.5Kw
3.Pneumatic (air-operated) source 0.6 Mpa clean and stable compressed air
4.Suitable bottles diameter: Φ40mm~Φ100mm; height : 60mm~230mm
5.Suitable caps diameter of caps: Φ20mm~Φ70mm;height of caps: Φ15mm~Φ30mm can be customized
6.Production capacity ≤2500bottles/hour
7.Machine weight about 580Kg
8.Dimension (L*W*H) 2000mm*1000mm*1780mm
Model GP-MT6030 weight check inline:

Weighing Capacity (g) less than 200g
Weighing Accuracy (g) ±0.2g~±0.5g
Minimum graduation(g) 0.1g
Weighing speed(pcs/m) 40-70m/min max:200 pec/min
Power Supply AC220V±7％; 50Hz; 250VA(customized)
Material SUS304
Working Condition Temperature: 0~40℃ Humidity: 30%~95%
Conveyor belt length: 1600mm
Conveyor belt height: 750±50mm
Warning: Buzzer alarm &conveyor belt running in stop
Machine Weight 110kg size: 200*900*1500mm
Final product samples:

Loose powder material:
