Description:
Model:GP-IP001 irregular-shaped bags cosmetic gel packing machine
Capacity 20-50bags/min (depends on filling material and roll film)
Filling range 1-100ml
Bag size
Length: 50-180mm
Width: 50-150mm
Film width Max: 320mm
Bag type Irregular shaped sachet, customer design
Package material Laminated film/Single layer Film
Air consumption 0.4m³/min, 0.6-0.8Mpa
Total power 2.5KW
Voltage 220V/50-60Hz
Total weight 450KG
Dimension 1020*880*2165mm (L*W*H)
Capacity 20-50bags/min (depends on filling material and roll film)
Filling range 1-100ml
Bag size
Length: 50-180mm
Width: 50-150mm
Film width Max: 320mm
Bag type Irregular shaped sachet, customer design
Package material Laminated film/Single layer Film
Air consumption 0.4m³/min, 0.6-0.8Mpa
Total power 2.5KW
Voltage 220V/50-60Hz
Total weight 450KG
Dimension 1020*880*2165mm (L*W*H)
The irregular-shaped bag packaging liquid is specially designed for our customer who only offered us the size of film. We not only manufacture the machine for them,the film as well drawn by our engineer team according to the requirements from the Buyer.
The Single lanes packaging machine packs the liquid or oil or other fluid liquid into the shaped bags which are made of PE/PET/Paper materials film.
Model:GP-IP001 Irregular packing machine is manufactured&customized with the samples bags offered by customers
PRODUCT IRREGULAR-SHAPED BAGS PACKAGING MACHINE DESCRIPTION on irregular shape bag ffs packaging machinery
1. It can complete automatically make you prefered bag, weigh, fill, seal, cut, print date code, etc.
2. 304 stainless steel machine, PLC computer control system with touch screen, display screen is simple and direct viewing in operation, daily production output and self-diagnostic machine error will be viewed directly from the screen.
3. It adopts sealing mould and cutting mould to keep irregular shaped sachet.
4. Driven type: pneumatic, it make the operation easy than mechanical driven type, and the packing samples more beautiful than common.
5. Attractive appearance. Stable performance.
6. The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts.
7. Intelligent temperature control by temperature controller to make heat balance better.
8. Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
9. With safe plastic box on rotating blade to avoid hurting operators hands.
10. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
main technical parameters and configurations of irregular bags packing machinery Gearpacking Brand:
Model:GP-IP001
Capacity:20-50bags/min (depends on filling material and roll film)
Filling range:1-100ml
Bag size:Length: 50-180mm
Width: 50-150mm
Film width:Max: 320mm
Bag type:Irregular shaped sachet, customer design
Package material:Laminated film
Air consumption:0.4m³/min, 0.6-0.8Mpa
Total power:2.5KW
Voltage:220V/50-60Hz
Total weight:450KG
Dimension:1020*880*2165mm (L*W*H)
Configuration of irregular bags liquid gel cosmetics packaging machine model Model:GP-IP001 PLC Japan Omron temperature control Japan Omron servo motor France Schneider power France Schneider display China Shanghai Siemens
Packing Materials:Paper/PE,PET/AL Foil/PE,PET/PE,Nylon/PE, Tea-leaf filtering paper etc
1. It can complete automatically make you prefered bag, weigh, fill, seal, cut, print date code, etc.
2. 304 stainless steel machine, PLC computer control system with touch screen, display screen is simple and direct viewing in operation, daily production output and self-diagnostic machine error will be viewed directly from the screen.
3. It adopts sealing mould and cutting mould to keep irregular shaped sachet.
4. Driven type: pneumatic, it make the operation easy than mechanical driven type, and the packing samples more beautiful than common.
5. Attractive appearance. Stable performance.
6. The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts.
7. Intelligent temperature control by temperature controller to make heat balance better.
8. Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
9. With safe plastic box on rotating blade to avoid hurting operators hands.
10. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
main technical parameters and configurations of irregular bags packing machinery Gearpacking Brand:
Model:GP-IP001
Capacity:20-50bags/min (depends on filling material and roll film)
Filling range:1-100ml
Bag size:Length: 50-180mm
Width: 50-150mm
Film width:Max: 320mm
Bag type:Irregular shaped sachet, customer design
Package material:Laminated film
Air consumption:0.4m³/min, 0.6-0.8Mpa
Total power:2.5KW
Voltage:220V/50-60Hz
Total weight:450KG
Dimension:1020*880*2165mm (L*W*H)
Configuration of irregular bags liquid gel cosmetics packaging machine model Model:GP-IP001 PLC Japan Omron temperature control Japan Omron servo motor France Schneider power France Schneider display China Shanghai Siemens
Packing Materials:Paper/PE,PET/AL Foil/PE,PET/PE,Nylon/PE, Tea-leaf filtering paper etc
Sample group pictures sent from customers for building machines:
Packaging pictures about our machine exported

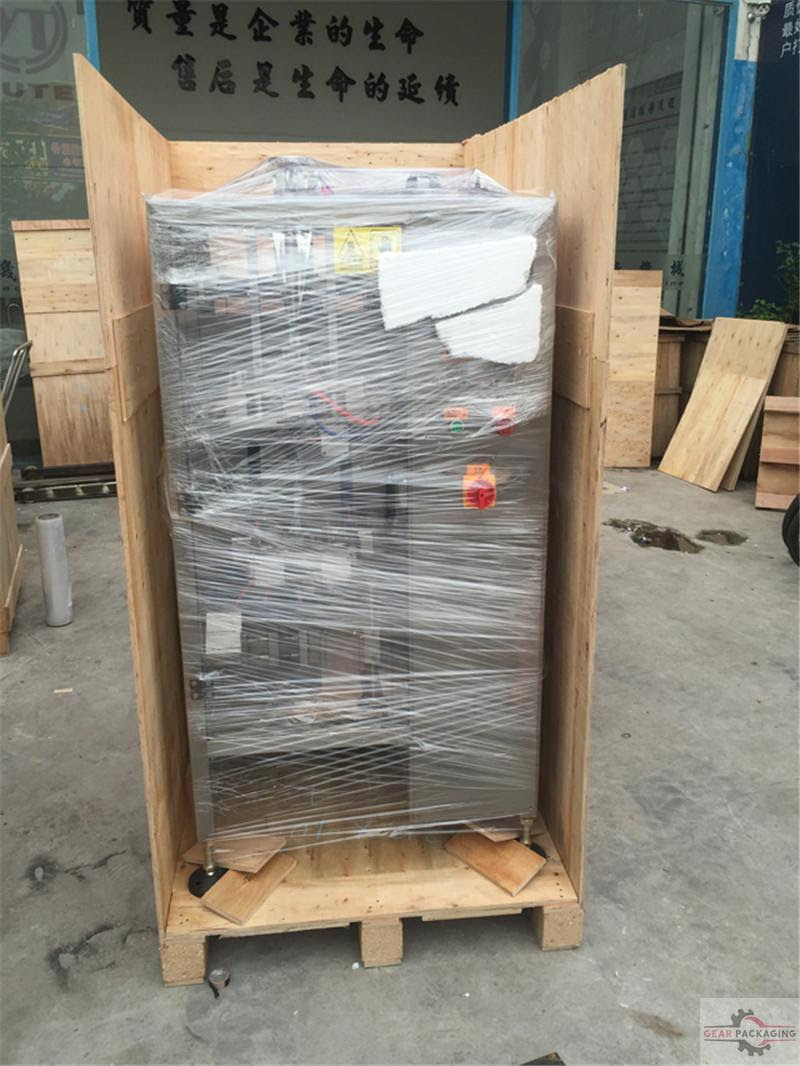

Wooden case packing of liquid packing machine irregular bags packaging equipments.
Wooden case packing of liquid packing machine irregular bags packaging equipments.
Orders processed steps:
After-sale service for packaging machinery irregular bags Model:GP-IP001
Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible . The cost should be in your account.(as above).
