Description:

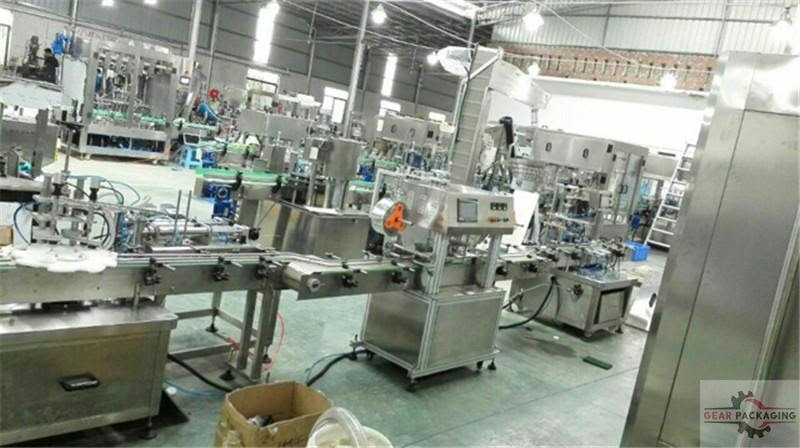

Cream paste jars rotary filling sealing screw capping line customized automatic filler capper equipments for cosmetic beaty industry
The production line including four parts :
►Model GP-JF01 two heads filling machine
Production capacity 1500-2200 pcs / hour
Filling volume 50-300ml Power 4.5kW
Air consumption 0.4m3 / min Power source 220V / 50Hz
Temperature 0-300 oC Weight 700 kg
3 cartons plywooden packaging ; dimension:5925*1285*2310mm
Weight : 1100kg
►Model GP-FS01 jars sealing machine
►Model GP-AC45 single head capping machine
►Model GP-630A round jars labeling machine
►Model GP-JF01 two heads filling machine
Production capacity 1500-2200 pcs / hour
Filling volume 50-300ml Power 4.5kW
Air consumption 0.4m3 / min Power source 220V / 50Hz
Temperature 0-300 oC Weight 700 kg
3 cartons plywooden packaging ; dimension:5925*1285*2310mm
Weight : 1100kg
►Model GP-FS01 jars sealing machine
►Model GP-AC45 single head capping machine
►Model GP-630A round jars labeling machine
This automatic cup filling film sealing bottle screw capping labeling production line for cosmetic cream is specially designed for liquid and cream products to be filled and sealed, such as yoghurt, ice cream, artificial milk, juice, drink etc. But If use manual feeding, also can use other solid materiel, such as chocolate, candy etc.
According to the samples &films sent from our customer we designed the filling line customizable .see the samples sent from the buyer .
Customized filling line in 3D illustration
The Model GP-JF01 Cup filling and sealing machine is widely used in various kinds of plastic cup for liquid filling and sealing. It can automatically finish the process of filling, sealing, cutting, printing the code, sterilizing in ultraviolet radiation and falling cup etc. In addition, it can be customized that according to your special requirements.
The machine is applied with world famous electrical and pneumatic components and can be adopted by PLC system according to clients' requirements. The machine can be equipped with PLC and touch screen control.
Technical Parameter of filling sealing capping labeling machine for cosmetic cream jars:
Filling +jars sealing+capping+labeling drawing in 2D
Basic parameter for filling machine
Model GP-JF01
Production capacity 1500-2200 pcs / hour
Filling volume 50-300ml Power 4.5kW
Air consumption 0.4m3 / min Power source 220V / 50Hz
Temperature 0-300 oC Weight 700 kg
3 cartons plywooden packaging ; dimension:5925*1285*2310mm
Weight : 1100kg
Basic parameter for sealing machine
Model GP-FS01
Voltage:AC220V/50HZ
air pressure:0.8Mpa 0.1m3/min
power:1500W
dimension:1650×550×1350mm
weight:135kg
sealing scope:Φ70-Φ150mm
sealing speed:400-900bot/h
sealing temperature:50-300temperature
Temperature form and deviation: Automatic constant temperature, a deviation of ± 3 temperature
Basic parameter for capping machine
Basic parameter for JARS labeling machine
Model GP-630A
According to the samples &films sent from our customer we designed the filling line customizable .see the samples sent from the buyer .
Customized filling line in 3D illustration
The Model GP-JF01 Cup filling and sealing machine is widely used in various kinds of plastic cup for liquid filling and sealing. It can automatically finish the process of filling, sealing, cutting, printing the code, sterilizing in ultraviolet radiation and falling cup etc. In addition, it can be customized that according to your special requirements.
The machine is applied with world famous electrical and pneumatic components and can be adopted by PLC system according to clients' requirements. The machine can be equipped with PLC and touch screen control.
Technical Parameter of filling sealing capping labeling machine for cosmetic cream jars:
Filling +jars sealing+capping+labeling drawing in 2DBasic parameter for filling machine
Model GP-JF01
Production capacity 1500-2200 pcs / hour
Filling volume 50-300ml Power 4.5kW
Air consumption 0.4m3 / min Power source 220V / 50Hz
Temperature 0-300 oC Weight 700 kg
3 cartons plywooden packaging ; dimension:5925*1285*2310mm
Weight : 1100kg
Basic parameter for sealing machine
Model GP-FS01
Voltage:AC220V/50HZ
air pressure:0.8Mpa 0.1m3/min
power:1500W
dimension:1650×550×1350mm
weight:135kg
sealing scope:Φ70-Φ150mm
sealing speed:400-900bot/h
sealing temperature:50-300temperature
Temperature form and deviation: Automatic constant temperature, a deviation of ± 3 temperature
Basic parameter for capping machine
Basic parameter for JARS labeling machine
Model GP-630A
Suitable label length (mm): 20mm ~ 314mm
Applicable Label width (backing paper width / mm): 15mm ~ 150mm
Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm
Height: 25mm ~ 230mm
Applicable standard roll diameter (mm): φ280mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 1mm
The standard speed (m / min): Servo: 5 ~ 25m/min
Stepping: 5 ~ 19m/min
Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)
Servo: 40 ~ 120pcs/min
Conveyor speed (m / min): 5 ~ 25m/min Weight (kg): about 185kg
Frequency (HZ): 50HZ Voltage (V): 220V
Power (W): 530W (traction stepper) 980W (traction servo)
Device dimensions (mm) (L × W × H): 1950mm × 1100mm × 1300mm
samples for filling sealing capping machine
Wooden case packing for filling-sealing-capping-labeling line before delivering the machines to the assigned warehouse
Guarantee: for all the machine, it claims one year for guarantee.
(Excluded from the warranty are problems due to accidents,misuse ,
misapplication, storage damage, negligence,or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,
if you need,our technician will go to your place to install and test the machine and
also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country)
should be on your account and you need paid for the technician USD50 per day.
also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician
will go to your place to fixed the machine as soon as possible. The cost should be in your account.
Applicable Label width (backing paper width / mm): 15mm ~ 150mm
Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm
Height: 25mm ~ 230mm
Applicable standard roll diameter (mm): φ280mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 1mm
The standard speed (m / min): Servo: 5 ~ 25m/min
Stepping: 5 ~ 19m/min
Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)
Servo: 40 ~ 120pcs/min
Conveyor speed (m / min): 5 ~ 25m/min Weight (kg): about 185kg
Frequency (HZ): 50HZ Voltage (V): 220V
Power (W): 530W (traction stepper) 980W (traction servo)
Device dimensions (mm) (L × W × H): 1950mm × 1100mm × 1300mm
samples for filling sealing capping machine
Wooden case packing for filling-sealing-capping-labeling line before delivering the machines to the assigned warehouse
Guarantee: for all the machine, it claims one year for guarantee.
(Excluded from the warranty are problems due to accidents,misuse ,
misapplication, storage damage, negligence,or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,
if you need,our technician will go to your place to install and test the machine and
also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country)
should be on your account and you need paid for the technician USD50 per day.
also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician
will go to your place to fixed the machine as soon as possible. The cost should be in your account.
