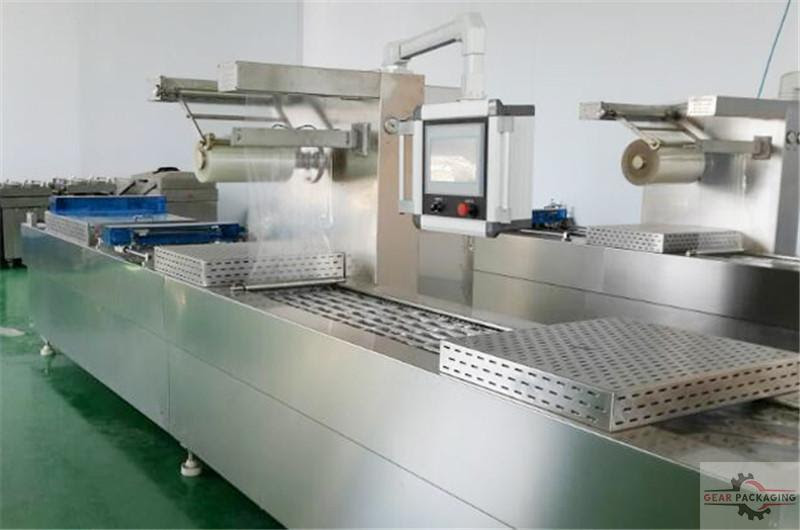

Automatic hard boxes MAP rigid vacuum thermoforming packing machine soft tray box sandwitches food soap vacuum packer stretch film forming packaging machinery

Desription:

Automatic hard boxes MAP rigid vacuum thermoforming packing machine soft tray box sandwitches food soap vacuum packer stretch film forming packaging machinery

Specification GP-VP420 GP-VP320
Width of Upper Film 393-394mm 293-294mm
Width of Lower Film 422mm 322mm
Vacuum ≤200Pa ≤200Pa
Compressed Air ≥0.6MPa ≥0.6MPa
Cooling Water ≥0.15MPa ≥0.15MPa
Power Source 380V/50Hz 380V/50Hz
Total Power 12 KW 8KW
Weight of Whole Machine 2200KG 1950KG
Overall Dimensions
6000x950x1860mm 4300x780x1760mm

GP series Automatic continuous Stretch Vacuum Packing Machine, Efficient Convenient Health and Easy operation.
Vacuum packing machine applies to vacuum, gas added and tight packing for all kinds of plastic bags, aluminum foil bags,. It can supply vacuum package for meat products , pickle products, marine products, frozen products, cooked food, fresh vegetable, medical products, chemical products, metal products, electrical components, and so on.

Using Range:

Packing of meat, fruit, seafood, vegetable, medicine, metals, electric component and so on.
Control system: Mitsubishi PLC, GOT1275, GOT1155 (GOT1030) color touch screen, Mitsubishi servo. Electric equipments are imported from Japan, Taiwan and Europe. Taking with the safe protecting device.
Characteristics of fully automatic MAP Packaging equipment:

Function:
►According to the user requirement of product packaging in vacuum, can charge N2, O2, CO2 mixed gas mixing ration can be adjusted by gas controller.
►The machine adopts hard aluminum alloy and stainless steel material, improves the corrosion resistance of the equipment;
►Using combined die, the replacement is convenient, the use of a machine, would with water cooling function;
►The stable performance, long service life of imported pneumatic components;
►Selection of extreme high vacuum, vacuum pump, excellent performance with original German vacuum pump;
►Can be equipped with automatic coding system;
►Imported special stainless steel clamping chain, suitable for all kinds of thickness of the film, the Dural stretch forming, special packaging;
►The use of advanced punching system can cut out the different shapes of the box without thorns corners rounded curvature, replacing operation is convenient, with scrap recycling system, maintain environment hygiene.
►Can choose square, round or other shaped carton. The carton size can be customized according to customer product mold.
Technical Table of automatic vacuum thermoforming MAP packing machine

Machine Main Components:

More details for model GP-VP420 vacuum packing machines



Electronic parts for GP series vacuum food packaging machine fully automatic with stretch film

Paking type:

Samples from model GP-VP420 vacuum packaging machine thermoforming equipment continuous vacuum sealer:

Wooden case for vacuum food packing machine fully automatic film tension pack

Guarantee: for all the machine, we have give one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account and you need paid for the technician  USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
