Description:
E-liquid filling stopper capping vertical labeling machine for health Electric Cigar liquid filler inner plugger capper labeler production line
Main Technical Parameters of filling stopper capping machines：
Model:GP-E50
Filling Volume 1-50ml
Output 30-50 Bottles/min
Filling Precision less than ±1%
Power Supply 220V/50Hz According to customer
Capping Rate more than 99%
Stoppering rate more than 99%
Air Supply 1.3 m3/h 0.4-0.8Mpa
Power 2.0 kw
Weight 650 kg
Dimension 1800*1000*1500mm
Model:GP-E50
Filling Volume 1-50ml
Output 30-50 Bottles/min
Filling Precision less than ±1%
Power Supply 220V/50Hz According to customer
Capping Rate more than 99%
Stoppering rate more than 99%
Air Supply 1.3 m3/h 0.4-0.8Mpa
Power 2.0 kw
Weight 650 kg
Dimension 1800*1000*1500mm

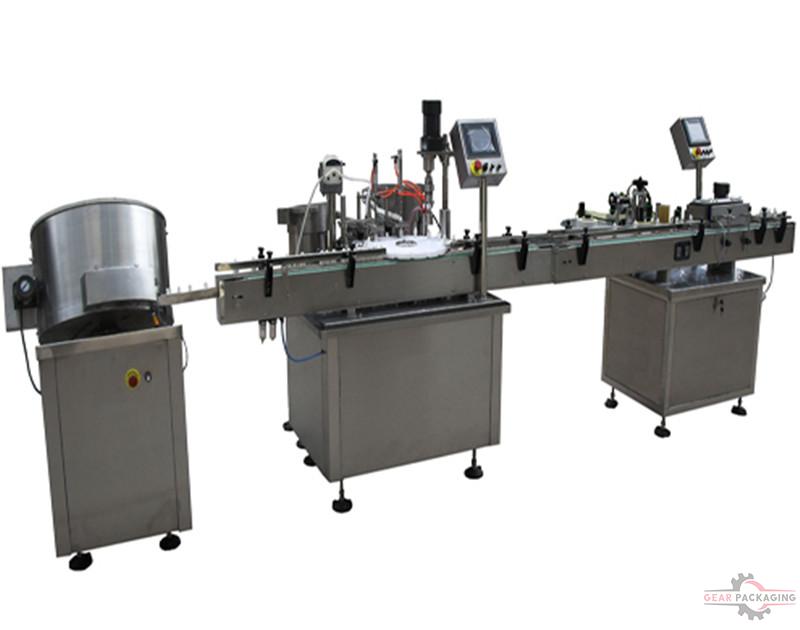

The Complete Line is Composed of Automatic Bottle Unscrambler、Automatic Filling stopper&capping machine、Automatic Sticker Labeling Machine,the output is 30-50Bottles/min,PLC control .
Below are the machine for constituting the whole line one by one :
Ⅰ.Automatic Bottle Unscrambler is suitable for automatic arrangement and rank for all kinds of impact resistant containers(round and square bottle),it is mainly used in pharmaceutical,food and relevant industry.just for plastic bottles.
Characteristic：
1、The speed of the equipment is quick and steady,the qualified rate is high,Simple operation,easy to grasp.
2、Automatic stopping when bottles are full and。
3、automatic starting when bottles are lacked on the belt conveyor
Main Technical Parameters of bottle unscramblers：
Model GP-120 Remarks：This machine just for plastic bottles
Output 30-100 Bottles/min
Power 220V/50Hz
Power supply 0.15 kw
Dimension 1200*1000*1000mm
For Automatic Bottle Unscrambler
No. Name Brand
1 Press-button Schneider
2 Magnetic Contactor Schneider
3 Relay Omron
4 PLC Mitsubishi FX1S-10MT
5 Motor JSCC made in Germany
6 photoelectric switch Shanghai Hu Gong
11 Turntable Made by ourself
ⅡThis machine E-Liquid Filling&Capping Machine
is mainly available to fill small dose into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys simple operation and also protects bottle caps.
Characteristic：
1、the mainframe running speed is frequency conversion.
2、the product quantity can be controlled.
3、Automatic stop function, if there is no bottles
4、No bottle , no filling
Main Technical Parameters of filling stopper capping machines：
Model GP-E50
Filling Volume 1-50ml
Output 30-50 Bottles/min GP-10G Model
Filling Precision less than ±1%
Power Supply 220V/50Hz According to customer
Capping Rate more than 99%
Stoppering rate more than 99%
Air Supply 1.3 m3/h 0.4-0.8Mpa
Power 2.0 kw
Weight 650 kg
Dimension 1800*1000*1500mm
For E-Liquid Filling&Capping Machine
No. Name Brand
1 Press-button Schneider
2 Magnetic Contactor Schneider
3 Relay Omron
4 frequency transformer Mitsubishi
5 Motor JSCC made in Germany
6 Air cylinder SMC
7 solenoid valve Airtac
8 Cam Made in china
9 Speed reducer Made in Taiwan
10 Bearing NSK
11 PLC Mitisubishi Fx1s-30MT
12 Peristaltic pump Longer Sino US joint venture
13 Touchscreen WEINVIEW
14 photoelectric switch Shanghai Hu Gong
15 Fibre-optical Autonics
16 Switching Mode Power Supply NWELL
17 Step motor SNAYO made in japan
Ⅲ.Automatic Vertical Non Sticker Labeling Machine for E-liquid bottles :
Automatic Non-sticker Vertical Sticker Labeling Machine is intended mainly for sticking label outside the side face of round or square bottles.The machine words stably and reliably, which leads to smooth labels, clearly printed dates and batch numbers(the printer allows three rows of characters).This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles. This product conforms to the specifications of GMP absolutely. Which is widely used in pharmaceutical, foods and chemical industries
Characteristic of vertical non sticker labeling machine：
Labeling exact and high precision
No bottle no labeling, It can monitor and correct automatically if there will be no label
This Machine can be used not only single but also joining in automatic packing line.
Main technical specification：
Productivity 0- 150 bottles/min
Bottle Diameter ф20-ф100mm
Labeling Precision less than ±1mm
Label Length 15-200mm
Label Width 10-100mm
Power Supply 0.5kw
Power 220V/50Hz
Weight 250kg Dimension 2000*950*1300mm
Main Electrical Configuration
As far as the vertical labeling machines for the E liquid bottles it can be replaced by either horizontal labeling machine or sometime sleeve shrink labeling machine choosed by customers.
Guarantee: for all the machine, it claims three years for guarantee.
(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
Ⅰ.Automatic Bottle Unscrambler is suitable for automatic arrangement and rank for all kinds of impact resistant containers(round and square bottle),it is mainly used in pharmaceutical,food and relevant industry.just for plastic bottles.
Characteristic：
1、The speed of the equipment is quick and steady,the qualified rate is high,Simple operation,easy to grasp.
2、Automatic stopping when bottles are full and。
3、automatic starting when bottles are lacked on the belt conveyor
Main Technical Parameters of bottle unscramblers：
Model GP-120 Remarks：This machine just for plastic bottles
Output 30-100 Bottles/min
Power 220V/50Hz
Power supply 0.15 kw
Dimension 1200*1000*1000mm
For Automatic Bottle Unscrambler
No. Name Brand
1 Press-button Schneider
2 Magnetic Contactor Schneider
3 Relay Omron
4 PLC Mitsubishi FX1S-10MT
5 Motor JSCC made in Germany
6 photoelectric switch Shanghai Hu Gong
11 Turntable Made by ourself
ⅡThis machine E-Liquid Filling&Capping Machine
is mainly available to fill small dose into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys simple operation and also protects bottle caps.
Characteristic：
1、the mainframe running speed is frequency conversion.
2、the product quantity can be controlled.
3、Automatic stop function, if there is no bottles
4、No bottle , no filling
Main Technical Parameters of filling stopper capping machines：
Model GP-E50
Filling Volume 1-50ml
Output 30-50 Bottles/min GP-10G Model
Filling Precision less than ±1%
Power Supply 220V/50Hz According to customer
Capping Rate more than 99%
Stoppering rate more than 99%
Air Supply 1.3 m3/h 0.4-0.8Mpa
Power 2.0 kw
Weight 650 kg
Dimension 1800*1000*1500mm
For E-Liquid Filling&Capping Machine
No. Name Brand
1 Press-button Schneider
2 Magnetic Contactor Schneider
3 Relay Omron
4 frequency transformer Mitsubishi
5 Motor JSCC made in Germany
6 Air cylinder SMC
7 solenoid valve Airtac
8 Cam Made in china
9 Speed reducer Made in Taiwan
10 Bearing NSK
11 PLC Mitisubishi Fx1s-30MT
12 Peristaltic pump Longer Sino US joint venture
13 Touchscreen WEINVIEW
14 photoelectric switch Shanghai Hu Gong
15 Fibre-optical Autonics
16 Switching Mode Power Supply NWELL
17 Step motor SNAYO made in japan
Ⅲ.Automatic Vertical Non Sticker Labeling Machine for E-liquid bottles :
Automatic Non-sticker Vertical Sticker Labeling Machine is intended mainly for sticking label outside the side face of round or square bottles.The machine words stably and reliably, which leads to smooth labels, clearly printed dates and batch numbers(the printer allows three rows of characters).This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles. This product conforms to the specifications of GMP absolutely. Which is widely used in pharmaceutical, foods and chemical industries
Characteristic of vertical non sticker labeling machine：
Labeling exact and high precision
No bottle no labeling, It can monitor and correct automatically if there will be no label
This Machine can be used not only single but also joining in automatic packing line.
Main technical specification：
Productivity 0- 150 bottles/min
Bottle Diameter ф20-ф100mm
Labeling Precision less than ±1mm
Label Length 15-200mm
Label Width 10-100mm
Power Supply 0.5kw
Power 220V/50Hz
Weight 250kg Dimension 2000*950*1300mm
Main Electrical Configuration
As far as the vertical labeling machines for the E liquid bottles it can be replaced by either horizontal labeling machine or sometime sleeve shrink labeling machine choosed by customers.
Guarantee: for all the machine, it claims three years for guarantee.
(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
