Pesticide fertilizer liquid chemical automatic filling screw capping aluminum foil induction sealing printing labeling machine foliar fertilizers bottling production line

Description:

Pesticide fertilizer liquid chemical automatic filling screw capping aluminum foil induction sealing printing labeling machine foliar fertilizers bottling production line

Technic data of Model GP-FL06 filling sealing printing labeling automated line
Model GP-F06 Filling nozzles 6 heads
Volt 220V
Filling speed 600-1800 bottle/h
Filling precision ±0.5%
Suitable filling range 50-5000 ml
Machine size 1500*800*1450 mm
Machine weight 260 kg
Product introduce on model GP-AF06 pesticide fertilizer liquid chemical automatic filling screw capping aluminum foil sealing printing labeling production line

1.This fulll automatic liquid fertilizer filling machine  is widely used in various no blistering liquids , such as pesticides,  liquid fertilizer, liquid micronutrient fertilizer, etc. The liquid fertilizer filling machine is also  workable to wine, mineral water, edible oil, lubricating oil, salad oil, fertilizer, and other liquid material.

2,any dose within 200-5000ml can be filled just by setting the date on the liquid fertilizer filling machine micro-controller ;

3,This liquid fertilizer filling machine is really a full automatic model machine ,  auto conveyor ,PLC control system , photoelectric  sensors, touch screen, the driven is by cylinder .the liquid fertilizer filling machine can achieve Auto Counting, no bottle ,no filling, so this pestcide filling machine t is a  labor saving machine .easy to operate .
4. packing process: Automatic filling machine->automatic screw cap machine->automatic aluminum foil sealing machine->automatic labeling machine-> Ink-jet printer
Six heads liquid fertilizer filling machine

Applicatoin products:

Model:GP-F06
Filling nozzles: 6 heads
Volt:220V
Filling speed:600-1800 bottle/h
Filling precision:±0.5%
Suitable filling range:50-5000 ml
Machine size:1500*800*1450 mm
Machine weight:260 kg

Capping machine of  liquid fertilizer filling machine

Production capacity:≤120bottles/min
Suitable bottle diameter:35mm-96mm
Suitable cap :12mm-50mm
Air pressure:0.6-0.8MPa
Power AC220V  50Hz, 2KW
Weight :500Kg
Machine size :2000×950×2100(L×W×H)
Aluminum foil sealing machine

Powder :AC 220V,50Hz,15A,3600W
Carrying speed:2.4-12m/min
Suitable bottle diameter:Φ16-60mm
Suitable bottle height :30-260mm
Sealing speed:0-300bottles/min
Main machine size:600×450×1150(mm)
Packing size:900×460×1900mm
Conveyor betl lenght:1800mm
Machine weight:65kg
Cooling type:Air/water cooling
Shell :Stainless steel
Suitable environment:Indoor 5-35°C,relatively wet<80%
Labeling machine

1.Used for round bottle of accurate label. Synchronous sponge lose stepless speed regulation points bottles of institutions, can be arbitrary set points bottles of spacing. Reciprocating cylinder positioning products, the products specified position in designated accurate label.
2.Can choose the desired function, the desired operating data can be set on the touch screen.Electrical control were selected international brands, such as: servo motors, drives, touch screen, PLC, optoelectronics and other labeling machine core electrical.
Ink jet date printing machine

Main Configuration of Model GP-FL06 filling sealing printing labeling automated line

Sample pictures:

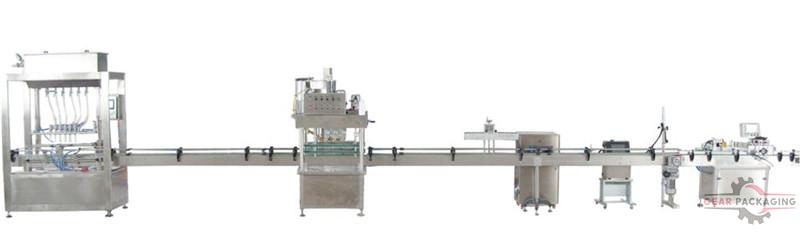

The whole line picture:

Package and delivery of liquid fertilizer filling machine

After-sales service for filling capping sealing printing labeling line


Guarantee: for all the machine, it claims one year for guarantee.
(Excluded from the warranty are problems due to accidents, misuse ,misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine
(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.
also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
