Description:
Pneumatic mixing heating filling machinery fully pneumatic semi automatic horizontal liquid sauce paste cream filler equipment
Model:GP-HTF01
Gas pressure 0.4NPA-0.6NPA
Filling range:5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml, 1000-5000ml
Filling precision ≤± 1%
Hopper volume 50L
heating temp 0-100°C
Filling speed ≤50 times/min
Weight 50KG
Size 1200mm×300mm×700mm
Working way By air compressor
Gas pressure 0.4NPA-0.6NPA
Filling range:5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml, 1000-5000ml
Filling precision ≤± 1%
Hopper volume 50L
heating temp 0-100°C
Filling speed ≤50 times/min
Weight 50KG
Size 1200mm×300mm×700mm
Working way By air compressor
Model GP-HTF01 Pneumatic horizontal mixing thick sauce filling machine with heating function
Pneumatic horizontal mixing thick sauce filling machine, the machine suitable for high viscosity, paste, thick sauce with particles, the ideal equipment for filling liquid. Jams, sauces, peanut butter, tomato sauce, bean paste, chili sauce, shrimp paste, apple sauce, salad dressing, caviar, sauce all can filling.
This series of semi-automatic piston liquid mixing filling machine with heating function, reasonable design, compact, easy to operate,the pneumatic part adopts Taiwan AirTac, SHAKO pneumatic components.
Material contact parts are made of 304 stainless steel material, meet the GMP requirements.
Filling volume adjustment handle, filling speed can be adjusted with high filling accuracy.
Filling head adopts anti-leakage, anti-pull and lifting filling device. Hopper with adjustable speed stirring device, so that the material is more uniform filling.
Vertical mixing and horizontal mixing difference:
Vertical mixing: Just a simple mixing, if it is of a material, stirring, to help better cutting material.
Horizontal mixing heating:
Pneumatic horizontal mixing thick sauce filling machine, the machine suitable for high viscosity, paste, thick sauce with particles, the ideal equipment for filling liquid. Jams, sauces, peanut butter, tomato sauce, bean paste, chili sauce, shrimp paste, apple sauce, salad dressing, caviar, sauce all can filling.
This series of semi-automatic piston liquid mixing filling machine with heating function, reasonable design, compact, easy to operate,the pneumatic part adopts Taiwan AirTac, SHAKO pneumatic components.
Material contact parts are made of 304 stainless steel material, meet the GMP requirements.
Filling volume adjustment handle, filling speed can be adjusted with high filling accuracy.
Filling head adopts anti-leakage, anti-pull and lifting filling device. Hopper with adjustable speed stirring device, so that the material is more uniform filling.
Vertical mixing and horizontal mixing difference:
Vertical mixing: Just a simple mixing, if it is of a material, stirring, to help better cutting material.
Horizontal mixing heating:
If there are two or more kinds of materials, and two kinds of materials is not the same weight, the material will be re-precipitation in the following, the drift in the light of the above materials, a horizontal stirring of the material can be stirred in the horizontal plane, so that more uniform mixing of materials together.
Model GP-HTF01
Gas pressure 0.4NPA-0.6NPA
Filling range:5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml, 1000-5000ml
Filling precision ≤± 1%
Hopper volume 50L
heating temp 0-100°C
Filling speed ≤50 times/min
Weight 50KG
Size 1200mm×300mm×700mm
Working way By air compressor
Operation
The machine is pneumatic, you need to have the ai compressor. If you don't have air compressor, you can choose our electric model.
You can set the interval time to let it fill continuously or use the pedal switch to control each filling time.

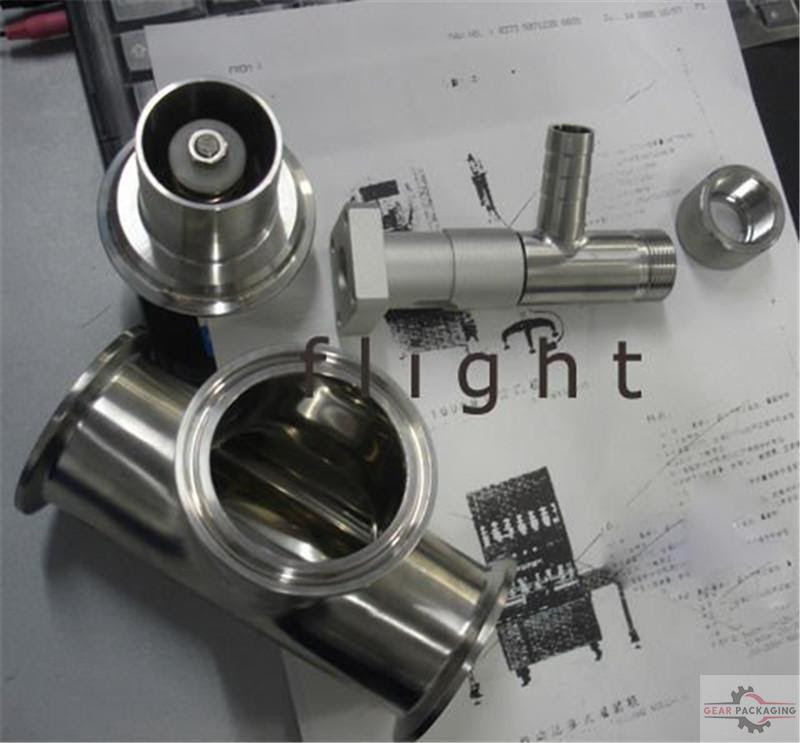

Filling noozle opening size according to customer's requirement:
Wooden case packaging for horizontal filling heating mixing machine semi automatic:
